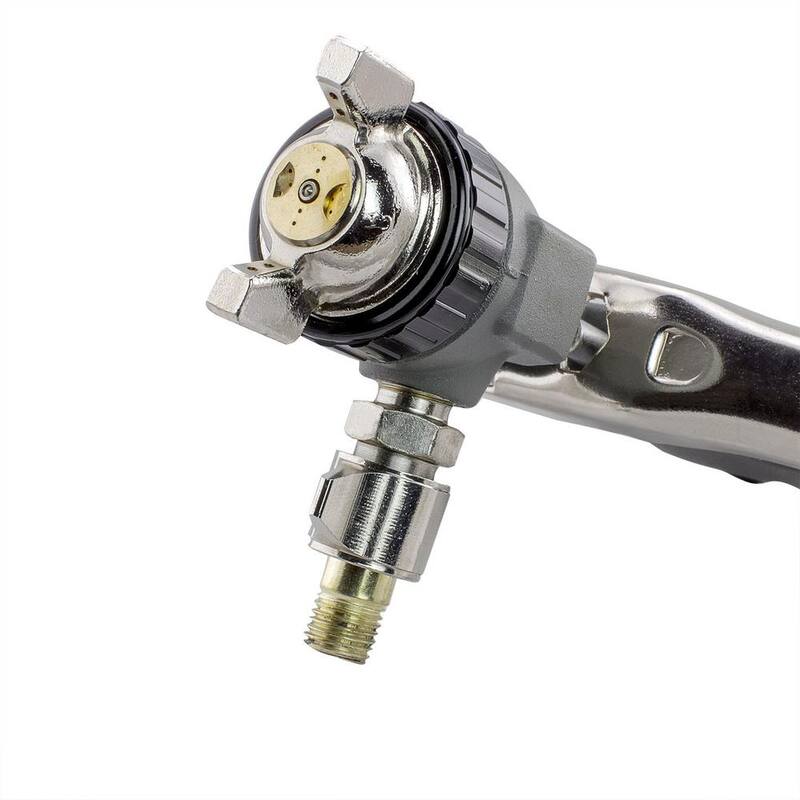

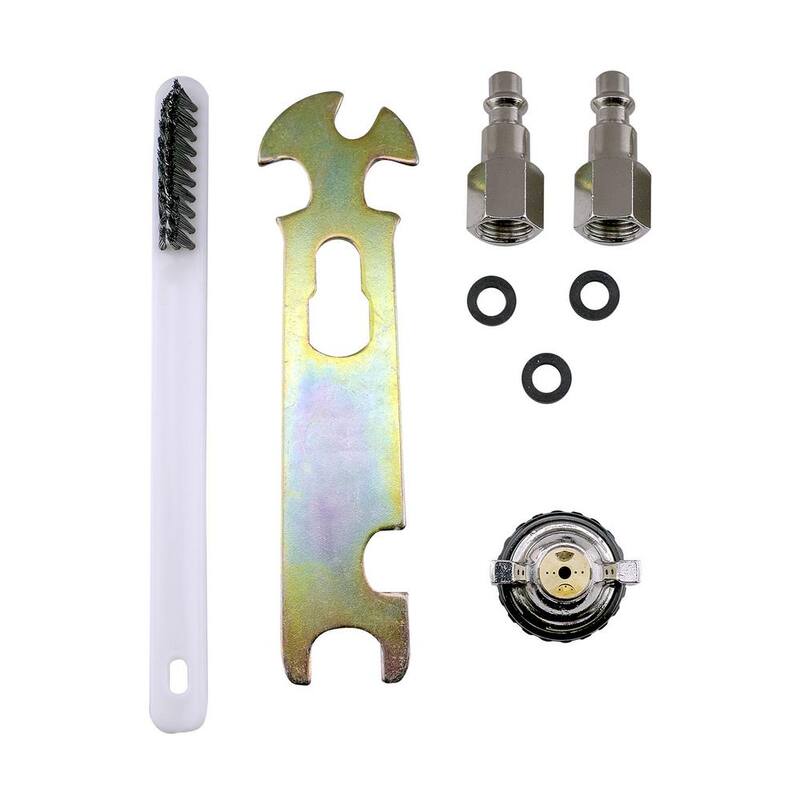

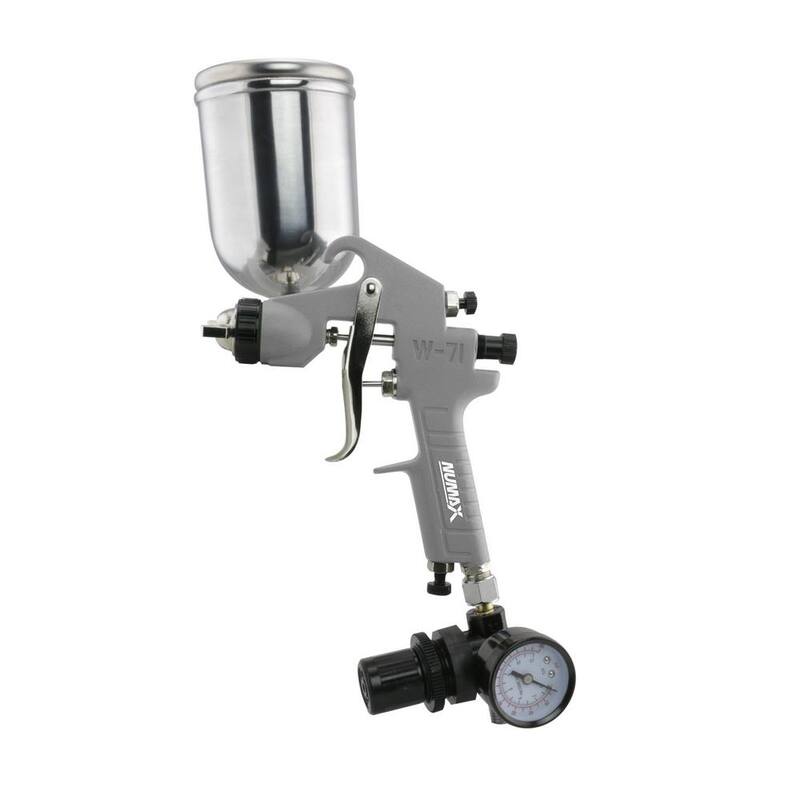

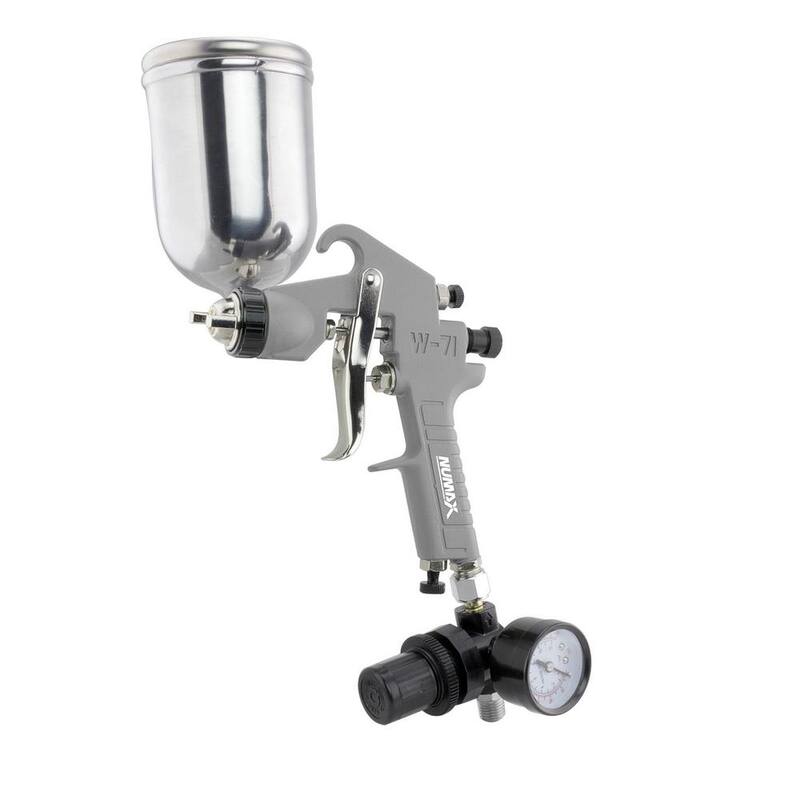

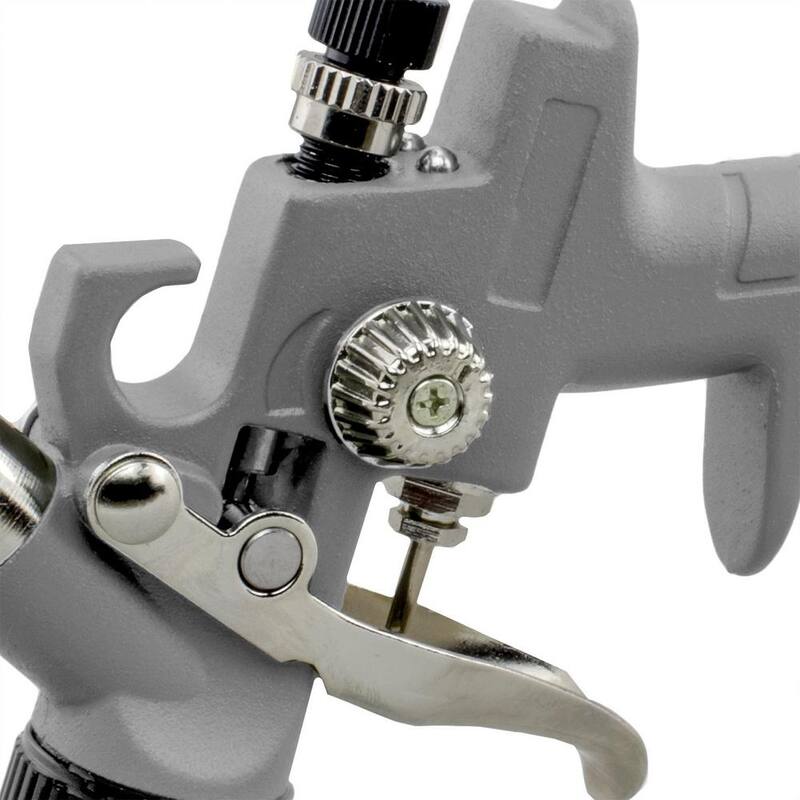

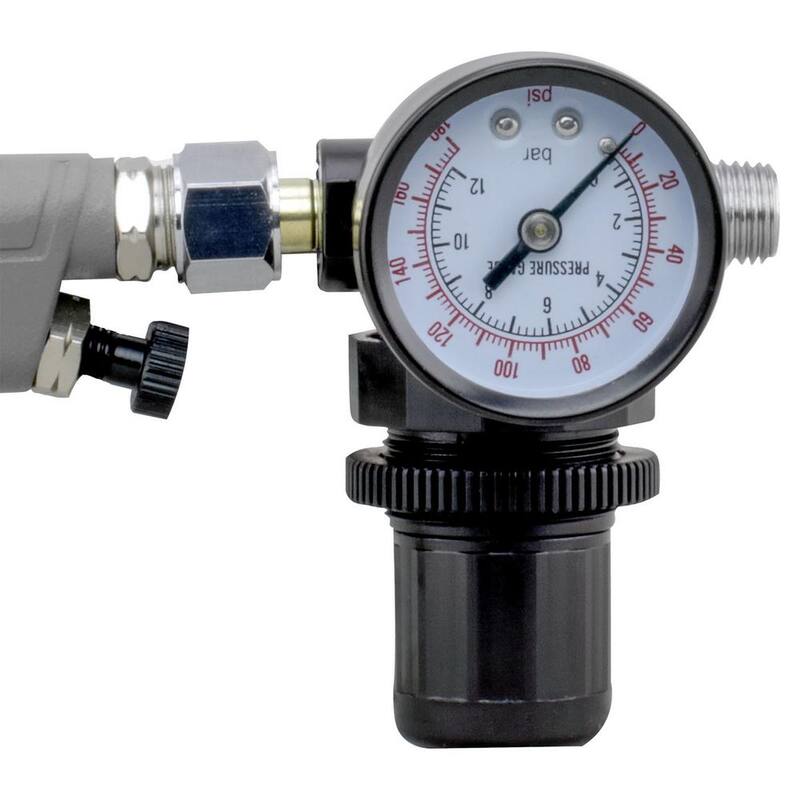

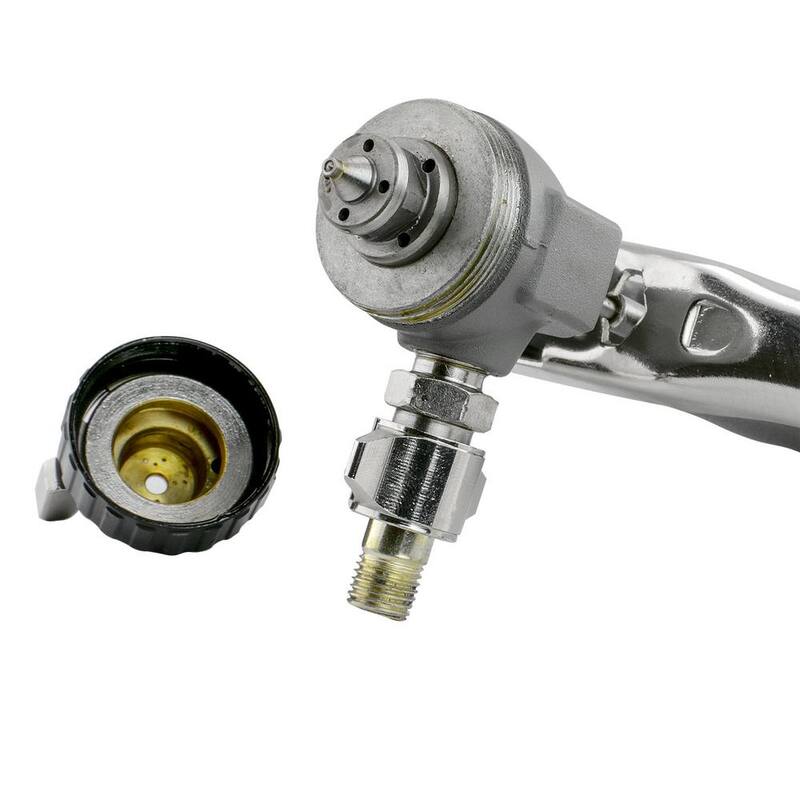

The NuMax SPSC15 Pneumatic 1.5 mm Tip Gravity Feed Spray Gun with 400cc Aluminum Cup is great for projects around the home such as painting furniture and woodworking, as well as automotive and industrial applications. This air powered paint sprayer has 3 adjustable control knobs (pattern, fluid and air control) for greater precision while painting. The pattern control knob allows you to switch between a full or round spray and the fluid control regulates the amount of paint mixed with air. The air control knob is used to increase or decrease the overall air flow. Additionally, turning the air cap ring at the end of the nozzle adjusts the direction of the spray fan to either vertical or horizontal. The trigger of this spray gun has a 2-step design. Press the trigger to the first step and connect to the air source. Pressing further allows the spray gun to engage the paint in the 400cc (13.5 oz.) gravity fed canister. The 1-piece ergonomically designed body of this spray gun is constructed of aluminum, while the needle and nozzle are made of stainless steel. A regulator and 2 different types of 1/4 in. NPT air connector fittings (standard and automotive) are included, along with a cleaning kit and adjustment tool. The Pneumatic 1.5 mm Tip Gravity Feed Spray Gun with 400cc Aluminum Cup ensures professional results for DIYers as well as contractors and is covered by NuMax's 1-Year Professional Tool Warranty.
| Accessory Type | Specialty |
|---|---|
| Air Pressure at Paint Cap PSI | 60 |
| Air Tool Type | Paint Sprayer |
| Air consumption at recommended operating pressure (CFM) | 6.2 |
| Applicator/Tool Type | Paint Sprayer |
| Average air consumption @ recommended operating pressure (CFM) | 8.75 |
| Features | Gravity Feed,Ladder Hook |
| Feed type | Gravity |
| Hose Included | No |
| Housing Material | Aluminum |
| Included | Cleaning Kit |
| Interior/Exterior | Exterior,Interior |
| Kit | No |
| Maximum Operating Pressure (PSI) | 65 PSI |
| Number of Spray Settings | 3 |
| Paint Cup Size | 400cc |
| Paint Sprayers Product Type | Pneumatic |
| Performance Features | Adjustable Spray Width,Air Flow Valve,Fan Control Screw,Flow Control,Fluid Control Valve |
| Project Type | Painting |
| Recommended operating pressure (psi) | 50 |
| Returnable | 90-Day |
| Tool Weight (lb.) | 0.778 lb |
| Tools Product Type | Air Tool |
| Trigger Configuration | Two Finger Trigger |
| Type | Gravity |
| Weight, Including Paint Cup (lb.) | 1.032 |
| Manufacturer Warranty | Covered by NuMax's 1 Year Professional Tool Warranty |
| Air Inlet Size (in.) | 1/4 in |
| Fan Size (in.) | 1.2 to 5.9 |
| Product Depth (in.) | 4.25 in |
| Product Height (in.) | 10.25 in |
| Product Length (in.) | 5.88 in |
| Product Width (in.) | 4.25 in |
| Tip Size | 1.5mm |
