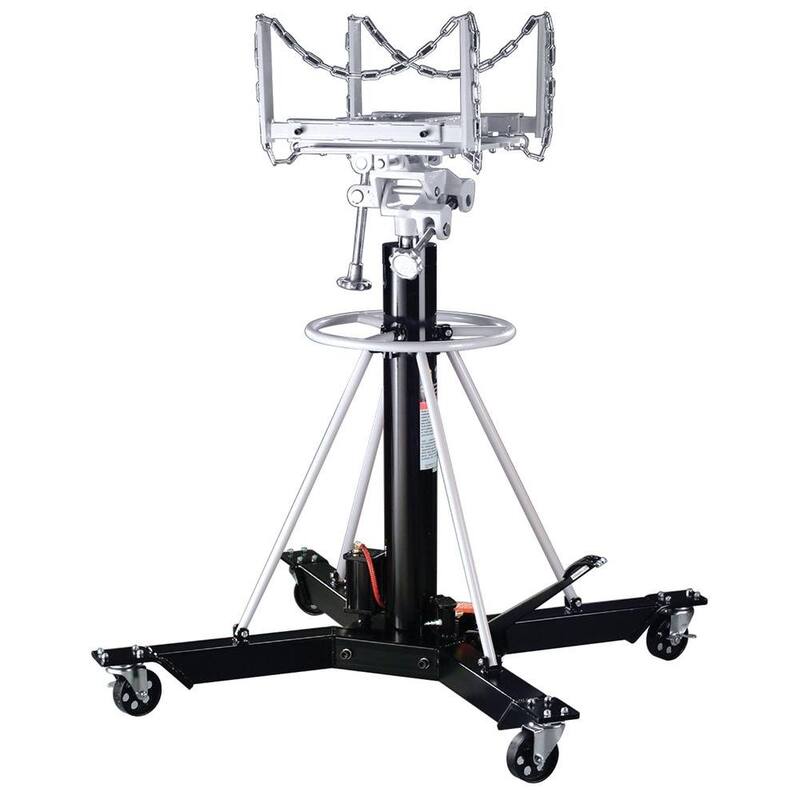

Lifting and Holding Transmissions without Hurting Your Back Omega 42001 Transmission Jack is Omega 1-Ton air actuated transmission jacks that equipped with the compact and powerful motor to raise the load to the desired height efficiently, effortlessly and safely. It is designed to remove and install the automotive and light truck transmissions, transfer cases and transaxles. Omega 42001 Telescopic Transmission Jack features the chrome-plated rams to maximize its high reach operated by a user-friendly foot-pedal. It is built with the rugged steel wheels and full swivel ball bear casters to easily maneuver. In addition, its extra wide base configuration lowers the center of gravity and promotes the stability. Omega 42001 Telescopic Transmission Jack also features the adjustable saddle that gives you the quick adjustment for most pan configuration. On top that, the unique foot release pedal gives you the control of lowing the load.- Chrome Plated Rams and Adjustable Saddle - Equips with Compact and Powerful Motor - Rugged Steel Wheels and Full Swivel Ball Bearing Casters - Extra Wide Base and Handle Release Pedal Specifications- Capacity: 1-Ton - minimum Height: 48-5/8 in.; maximum Height: 77-3/8 in.; - Air Pressure Required: 110-175 psi - Saddle Base: 13 in. x 13 in. - Jack Size: 42-1/2 in. x 39-1/2 in. - GW: 294 lbs.
| Features | Rust Resistant,Water Resistant |
|---|---|
| Frame Material | Steel |
| General Part Type | Transmission Jack |
| Ideally Used For | Heavy-Duty |
| Included | No Additional Items Included |
| Material | Steel |
| Maximum Lift Height (in.) | 78 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 78 |
| Product Weight (lb.) | 294 lb |
| Returnable | 90-Day |
| Tilt Capacity Back (degrees) | 0 |
| Tilt Capacity Front (degrees) | 0 |
| Tilt Capacity Side (degrees) | 0 |
| Weight Capacity (lb.) | 2000 |
| Manufacturer Warranty | 1 Year |
| Base Length (in.) | 42 |
| Base Width (in.) | 38.75 |
| Collapsed height (in.) | 48.625 |
| Handle Length (in.) | 42.5 in |
| Product Depth (in.) | 42.5 in |
| Product Height (in.) | 48.625 in |
| Product Width (in.) | 39.5 in |
