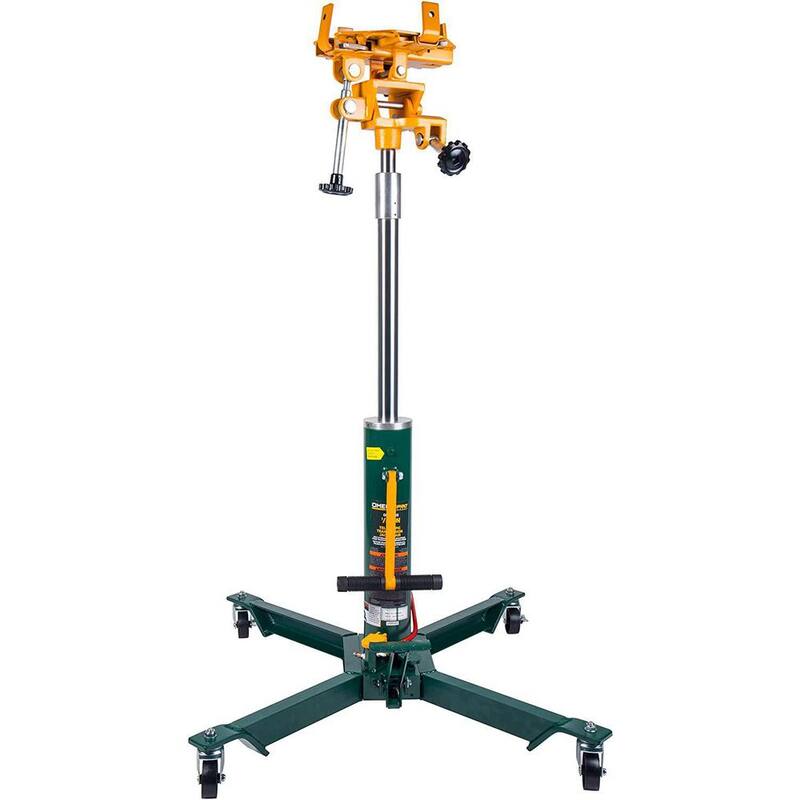

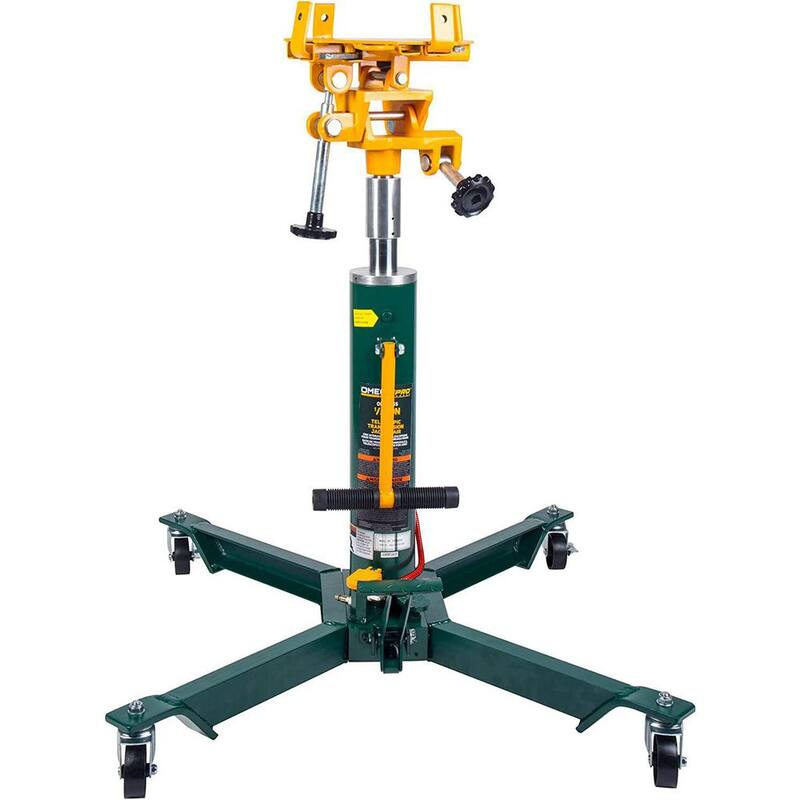

Omega Pro OP3605S Transmission Jack is Omega 1/2 Ton air actuated transmission jacks that equipped with the compact and powerful motor to raise the load to the desired height efficiently, effortlessly and safely. It is designed to remove and install the automotive and light truck transmissions, transfer cases and transaxles. It features the chrome-plated rams to maximize its high reach operated by a user-friendly foot-pedal. It is built with the rugged steel wheels and full swivel ball bear casters to easily maneuver. In addition, its extra wide base configuration lowers the center of gravity and promotes the stability. This Telescopic Transmission Jack also features the adjustable saddle that gives you the quick adjustment for most pan configuration. On top that, the unique foot release pedal gives you the control of lowing the load.
| Features | No Additional Features |
|---|---|
| Frame Material | Steel |
| General Part Type | Transmission Jack |
| Ideally Used For | General Automotive |
| Included | Handle,No Additional Items Included |
| Material | Steel |
| Maximum Lift Height (in.) | 78 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 39.62 |
| Product Weight (lb.) | 171.6 lb |
| Returnable | 90-Day |
| Tilt Capacity Back (degrees) | 0 |
| Tilt Capacity Front (degrees) | 0 |
| Tilt Capacity Side (degrees) | 0 |
| Weight Capacity (lb.) | 1000 lb |
| Manufacturer Warranty | One Year |
| Base Length (in.) | 10.25 |
| Base Width (in.) | 5.12 |
| Collapsed height (in.) | 15 |
| Handle Length (in.) | 22 in |
| Product Depth (in.) | 64.6 in |
| Product Height (in.) | 14.8 in |
| Product Width (in.) | 23.6 in |
