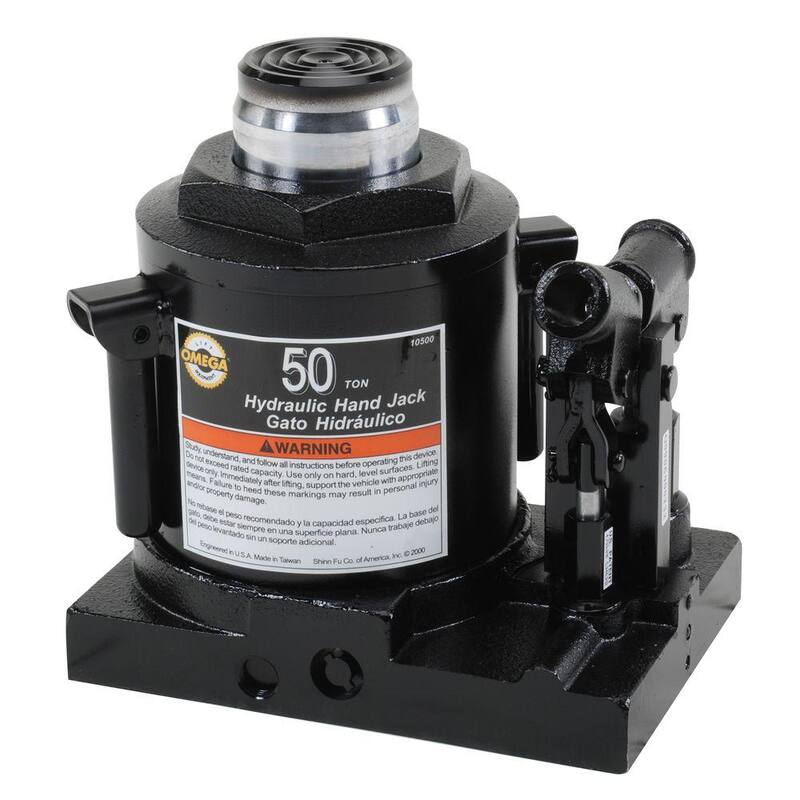

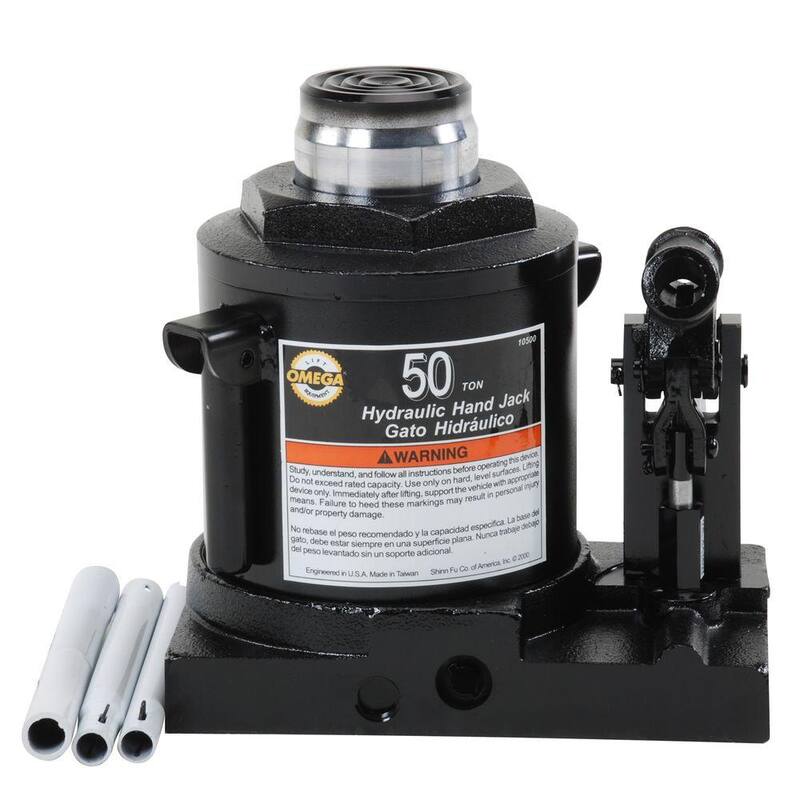

Omega Side Pump Bottle Jacks Get Your Job Done with Ease Omega 10500 bottle jack is a 50-Ton side pump hydraulic bottle jack. With the bypass mechanism built in, it protects the hydraulic system from the internal damage. Its machined and polished cylinders with die cut threads provide non-abrasive leak free, durable performance. Omega 10500 bottle jack is fabricated from hard cast steel with the heat-treated critical stress areas. It also features the unique cross type forced release valve that assures positive load control. In addition, it is protected from overload.- Overload Protection - Machined and Polished Cylinders with Die - Cut Threads - Fabricated from Hard Cast Steel with Heat Treated Critical Stress areas - Built - In Bypass Mechanism and Unique Forged Released Valve - Unique cross type forged release valve assures positive load control Specifications-Capacity: 50-Ton - Base Size: 10-3/4 in. x 7-5/8 in. - Minimum Height: 9-1/2 in. Maximum Height: 13-7/8 in. - Extension Screw: N/A - GW: 103-1/2 lbs.
| Features | Rust Resistant |
|---|---|
| Frame Material | Steel |
| General Part Type | Bottle Jack |
| Included | No Additional Items Included |
| Material | Steel |
| Maximum Lift Height (in.) | 14 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 14 |
| Product Weight (lb.) | 103.5 lb |
| Returnable | 90-Day |
| Saddle Diameter (in.) | 3 |
| Weight Capacity (lb.) | 100000 |
| Manufacturer Warranty | 1 Year |
| Base Length (in.) | 10.875 |
| Base Width (in.) | 7.575 |
| Collapsed height (in.) | 9.50 |
| Handle Length (in.) | 16 |
| Product Depth (in.) | 10.75 in |
| Product Height (in.) | 9.50 in |
| Product Width (in.) | 7.625 in |
