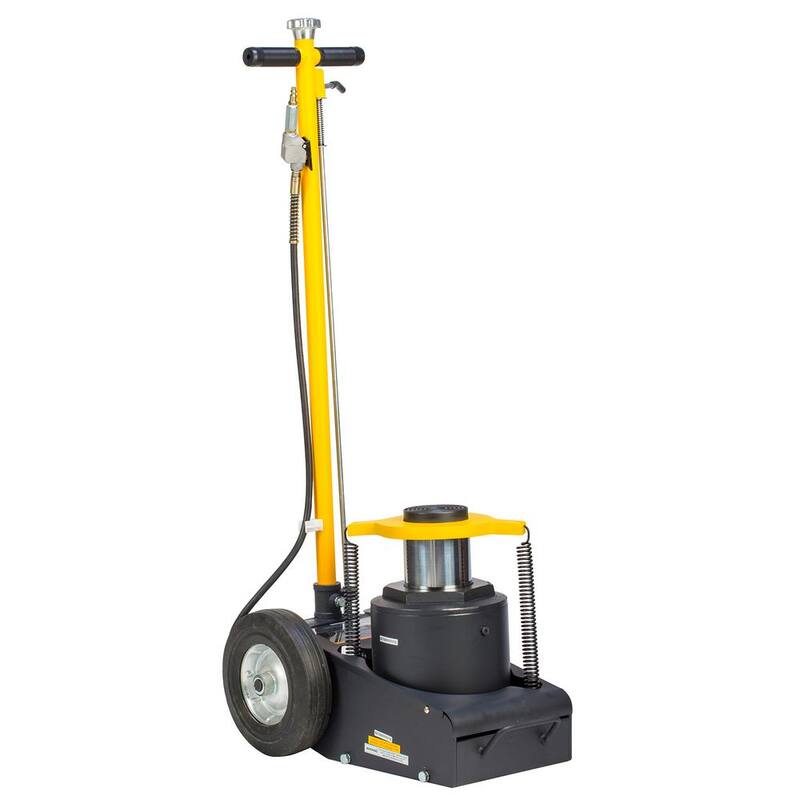

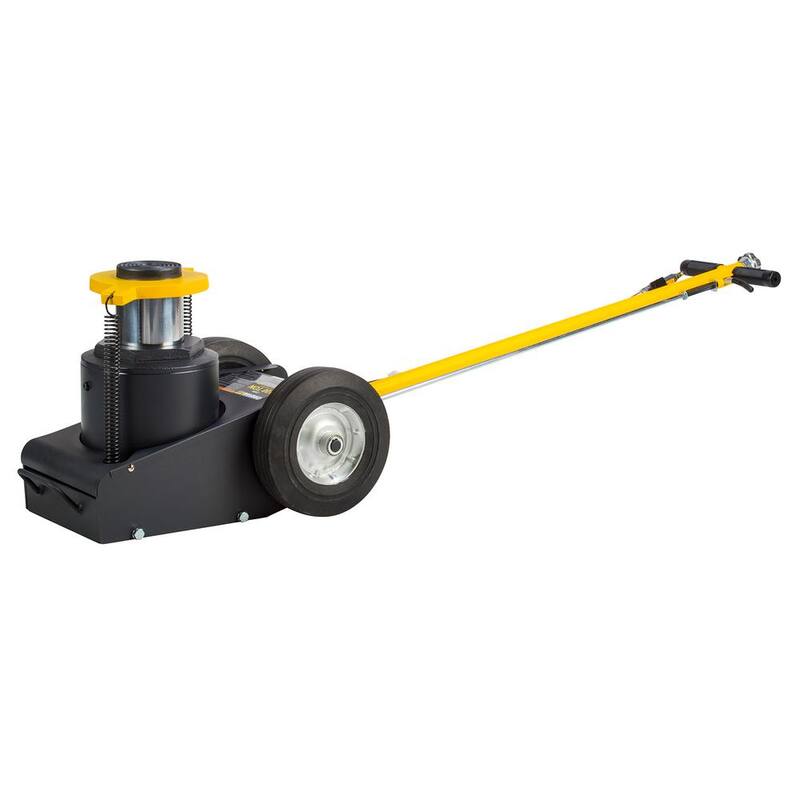

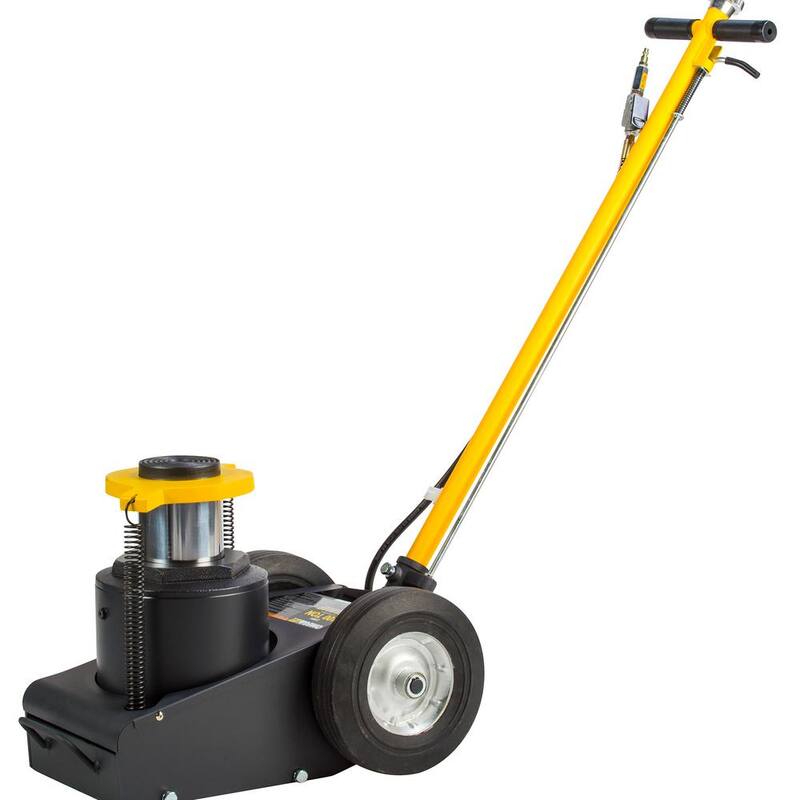

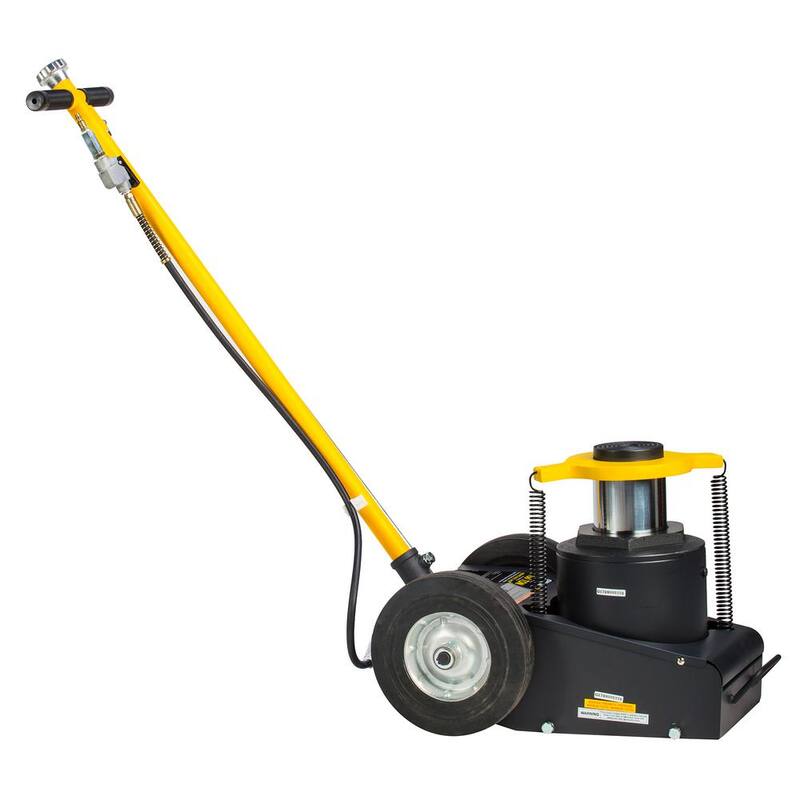

This air actuated hydraulic axle jack that is equipped with high speed air turbo motor US patent number: 5,341,723 to raise the load to the desired height efficiently, effortlessly and safely. A built-in bypass device protects hydraulic system from over pumping damage, US patent number: 5,946,912. It features chrome plated ram that prolongs seal life and resists corrosion. Compact, low profile design for maximum access, which fits easily and safely between wheels of tandem axle vehicle. Effortlessly raises saddle quickly, then power lifts to desired height. Handle-top metered-control release valve for easy height adjustment. Quick rated capacity lift using air-actuated operation. User-friendly, self-returning spring minimizes operators effort. Sturdy 1-piece handle assembly with fingertip remote control for handle with a choice of 3 handle angles 90°, 45° or 0° for easy access. Large steel and rubber wheels for easy positioning and smooth motion.
| Color/Finish | Black |
|---|---|
| Features | Rust Resistant |
| Frame Material | Steel |
| General Part Type | Hydraulic Jack |
| Ideally Used For | General Automotive |
| Included | No Additional Items Included |
| Material | Steel |
| Maximum Lift Height (in.) | 19 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 19 |
| Product Weight (lb.) | 262.9 lb |
| Returnable | 90-Day |
| Saddle Diameter (in.) | 4.5 |
| Weight Capacity (lb.) | 200000 |
| Manufacturer Warranty | ONE YEAR |
| Chassis Length (in.) | 26.75 |
| Collapsed height (in.) | 12 |
| Handle Length (in.) | 49 |
| Product Depth (in.) | 18.5 in |
| Product Height (in.) | 14.375 in |
| Product Width (in.) | 26.75 in |
