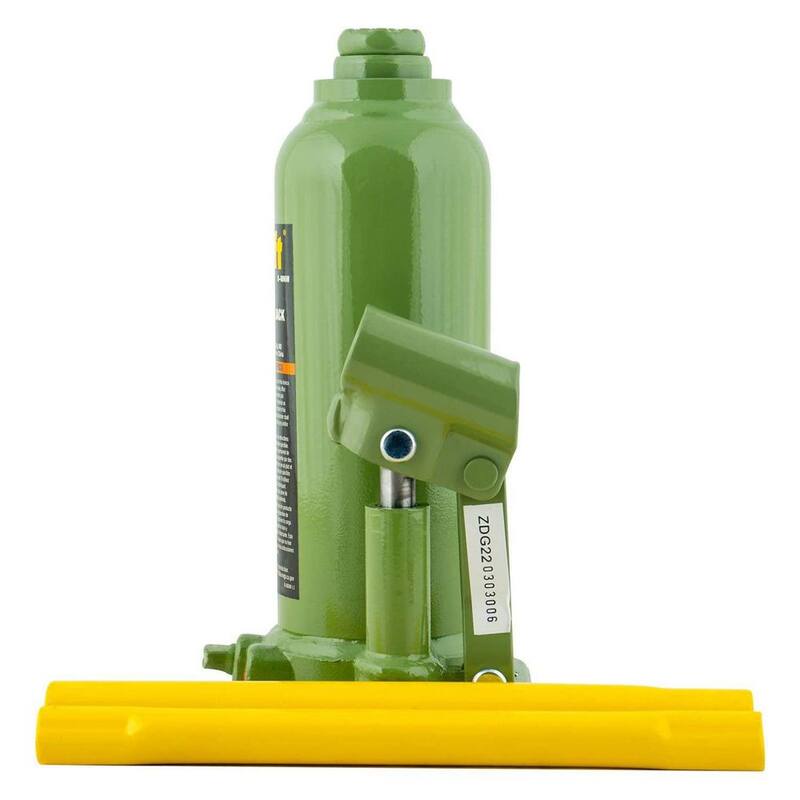

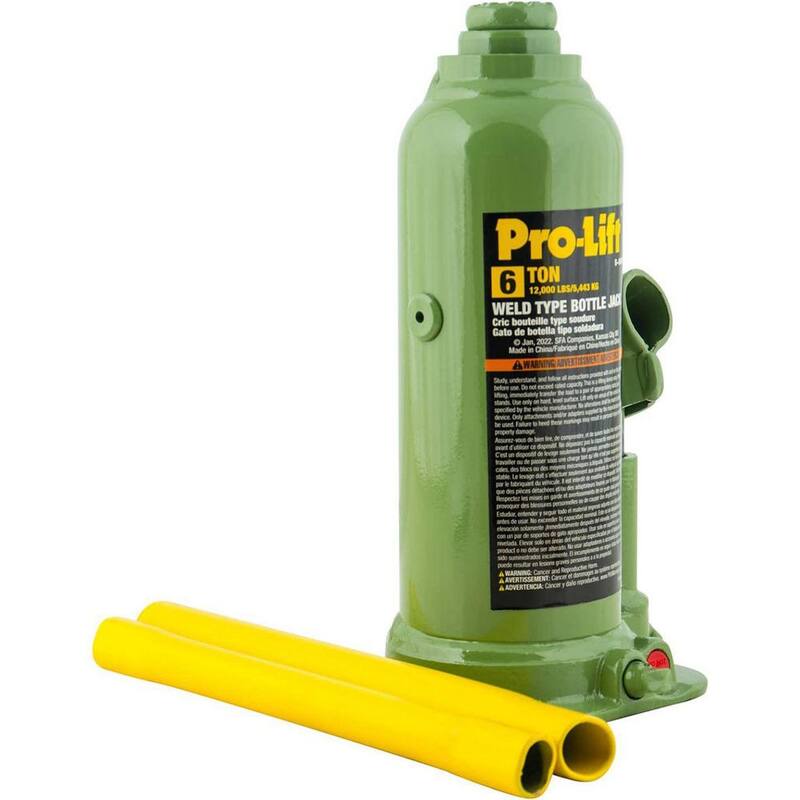

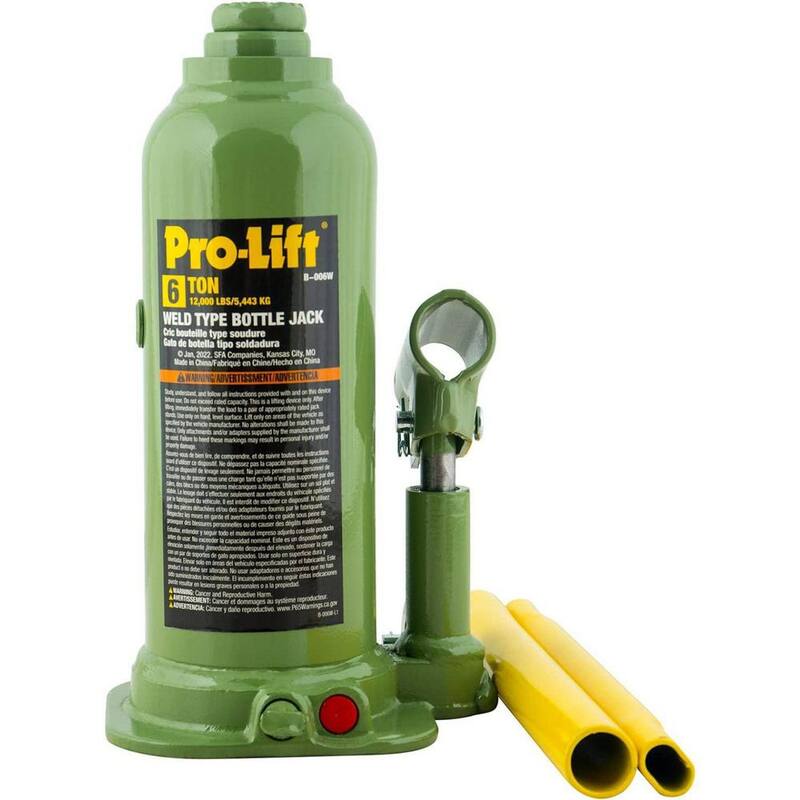

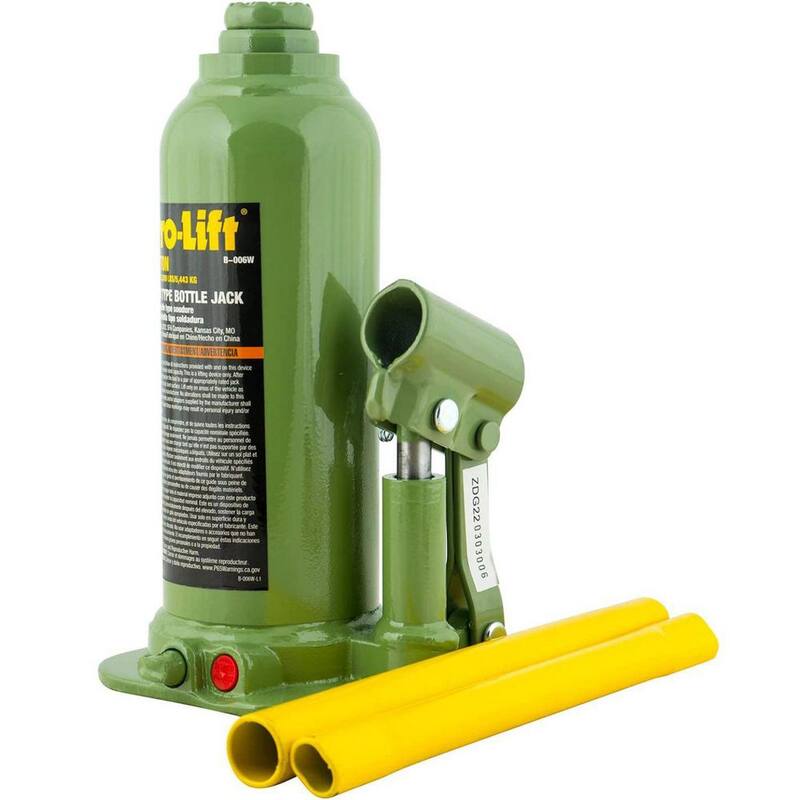

The hydraulic system is protected from internal damage by a patented by-pass mechanism. Machined and polished cylinders with die-cut threads provide non-abrasive leak-free, durable performance. Fabricated from hard-cast steel with heat-treated critical stress areas. A serrated heat-treated saddle provides a generous lifting area and secure grip. Heat-treated extension screw allows low pick-up height adjustment and maximum lift height U.S. patented built-in by-pass device protects the hydraulic system from over pumping damage. A unique cross-type forged release valve assures positive control. A wide, rugged base provides stability and strength. Critical stress points are reinforced in all models for added durability and dependability.
| Features | No Additional Features |
|---|---|
| Frame Material | Steel |
| General Part Type | Bottle Jack |
| Included | Handle |
| Material | Steel Alloy |
| Maximum Lift Height (in.) | 15.75 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 8.25 |
| Product Weight (lb.) | 9 lb |
| Returnable | 90-Day |
| Saddle Diameter (in.) | 4 |
| Weight Capacity (lb.) | 12000 lb |
| Manufacturer Warranty | One Year |
| Base Length (in.) | 4.43 |
| Base Width (in.) | 4.5 |
| Collapsed height (in.) | 8.5 |
| Handle Length (in.) | 13 in |
| Product Depth (in.) | 10 in |
| Product Height (in.) | 9 in |
| Product Width (in.) | 9 in |
