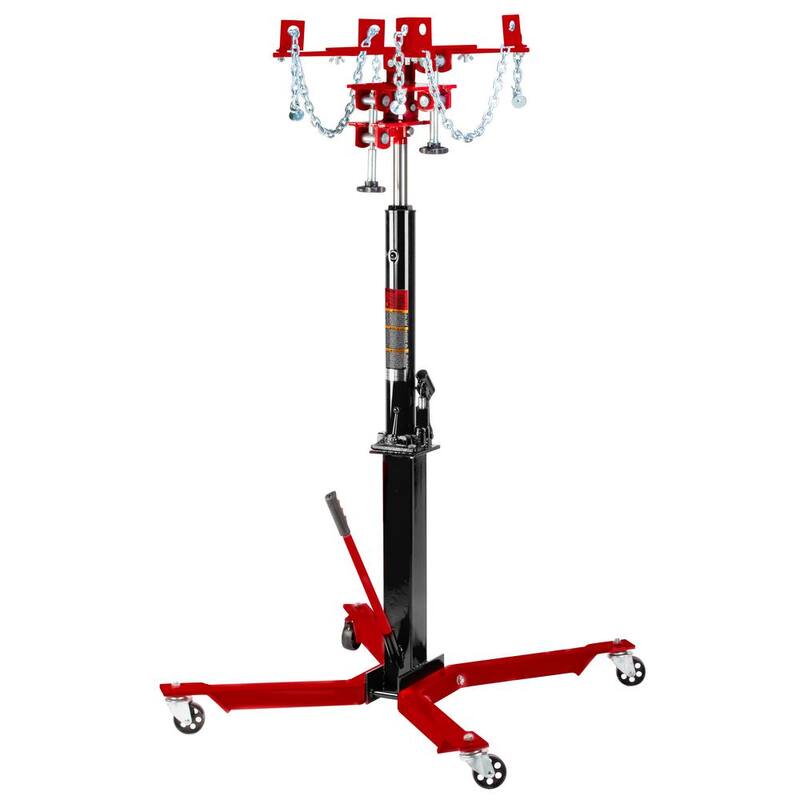

T-2501 Economy Transmission Jack features 700 lbs. capacity and is designed to remove and install the automotive and light truck transmissions, transfer cases and transaxles. The chrome-plated rams to maximize its high reach operated by a user-friendly foot-pedal. It is built with the rugged steel wheels and full swivel ball bear casters to easily maneuver. In addition, its extra wide base configuration lowers the center of gravity and promotes the stability. It also features the adjustable saddle that gives you the quick adjustment for most pan configuration. On top that, the unique foot release pedal gives you the control of lowing the load. Specifications:- Capacity: 700 lbs. - Minimum Height: 57-1/4 in. - Maximum Height: 76-3/8 in. - Saddle Base: 9-7/8 in. x 9-7/8 in. Minimum Saddle Area: 9-7/8 in. x 9-7/8 in. - Maximum Saddle Area: 18-7/8 in. x 18-7/8 in. - Jack Size: 36-1/8 in. x 32-5/8 in. - GW: 130 lbs.
| Features | Rust Resistant |
|---|---|
| Frame Material | Steel |
| General Part Type | Transmission Jack |
| Ideally Used For | Heavy-Duty |
| Included | No Additional Items Included |
| Material | Steel |
| Maximum Lift Height (in.) | 77 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 77 |
| Product Weight (lb.) | 130 lb |
| Returnable | 90-Day |
| Tilt Capacity Back (degrees) | 0 |
| Tilt Capacity Front (degrees) | 0 |
| Tilt Capacity Side (degrees) | 0 |
| Weight Capacity (lb.) | 700 |
| Manufacturer Warranty | One Year |
| Base Length (in.) | 36.125 |
| Base Width (in.) | 32.625 |
| Collapsed height (in.) | 57.25 |
| Handle Length (in.) | 20 |
| Product Depth (in.) | 36.125 in |
| Product Height (in.) | 57.25 in |
| Product Width (in.) | 32.625 in |
