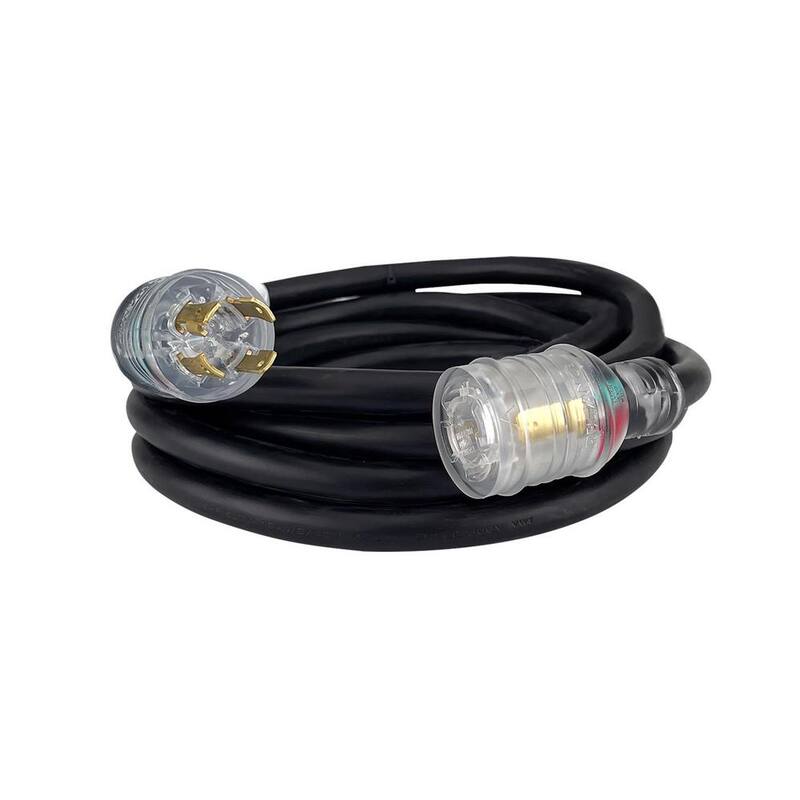

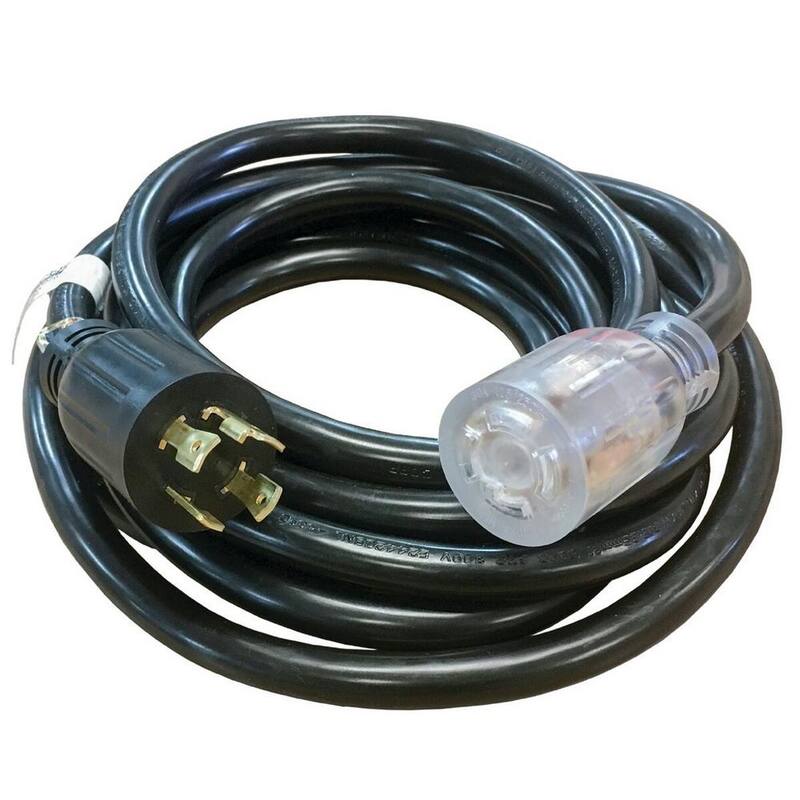

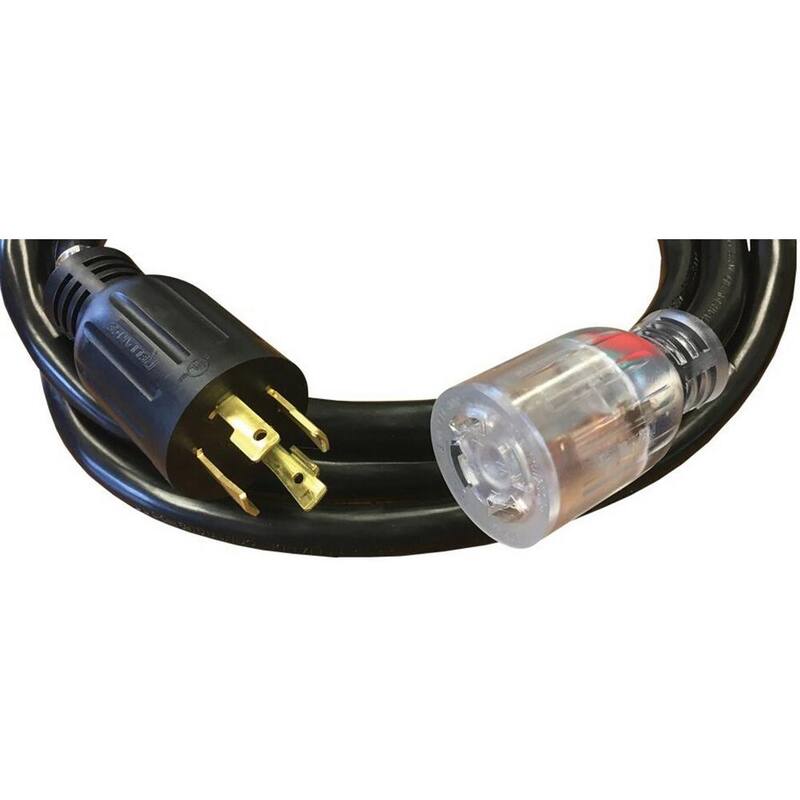

The Reliance Controls PC3020, 20-ft., 30-Amp power cord is designed for use with manual transfer switches, transfer panel and power inlet boxes. This heavy-duty power cord features 10-Gauge, 4-wire with NEMA L14-30 plug and connector ends. It is UL Listed for use with outdoor appliances and covered by a 5-year warranty.
| Application | General Purpose |
|---|---|
| Cord Color | Black |
| Cord Designation | SJOW |
| Cord Filling | Tubed with Filler |
| Cord Length (ft.) | 20 ft |
| Durability | Cold Weather Rated |
| Features | 4-Prong Plug,Twist-Lock Plug |
| Gauge | 10 |
| Indoor/Outdoor | Indoor/Outdoor |
| Jacket Material | Thermoplastic CPE |
| Maximum Amperage (A) | 30 A |
| Maximum Wattage | 7500 |
| Minimum Temperature (F) | -40 F |
| Number of Conductors | 4 |
| Number of Receptacles | 1 |
| Pack Size | 1 |
| Plug Configuration | 14-30 |
| Plug Housing Material | Thermoplastic Elastomer |
| Receptacle Configuration | 14-30 |
| Returnable | 90-Day |
| Voltage (V) | 125/250 V |
| Weight (lb.) | 7 lb |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 5 years |
| Cord Thickness (in.) | 0.7 in |
| Wire Gauge | 10 |
