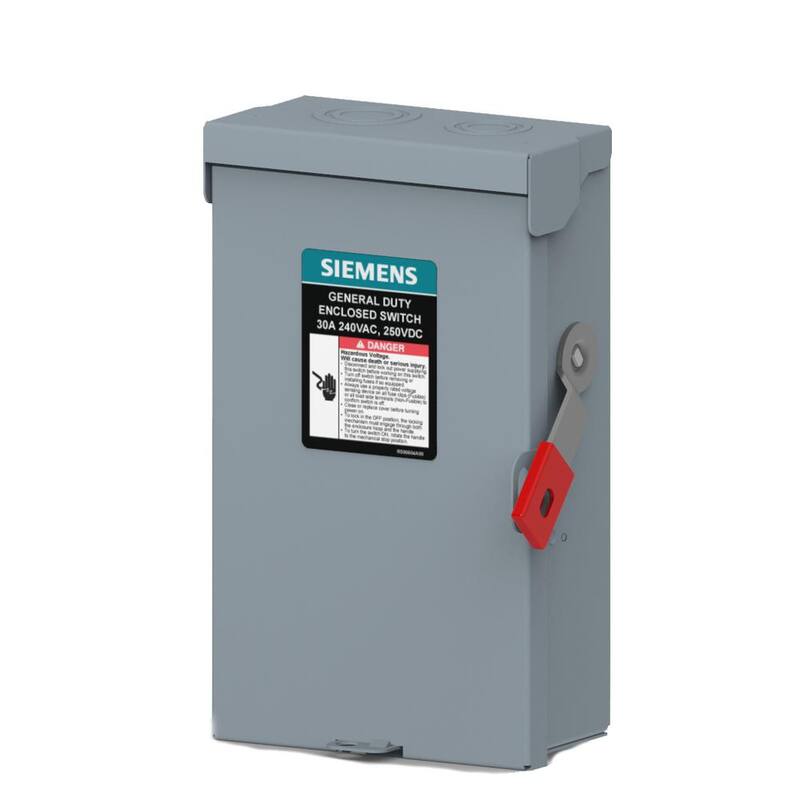

Siemens General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. Siemens has the fit for your application with our newly expanded line. The new expanded line provides a depth of switches to make your job easier. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000A when used with Class R or T fuses, or 10,000A max when used with Class H fuses. All switches are provided with imbedded "ON" and "OFF" indicators and padlocking provisions on the handle and door. All switches are UL listed. Fuses not included on fusible device. Use HA type hubs if required.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Safety Switch |
| Features | No Additional Features |
| Fused | Fused |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 30 A |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 1 |
| Phase Type | 3 Phase |
| Power Distribution Features | Fusible |
| Product Weight (lb.) | 4.2 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 240 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | Standard Limited Warranty |
| Product Depth (in.) | 3.6 in |
| Product Height (in.) | 10.1 in |
| Product Width (in.) | 6.45 in |
