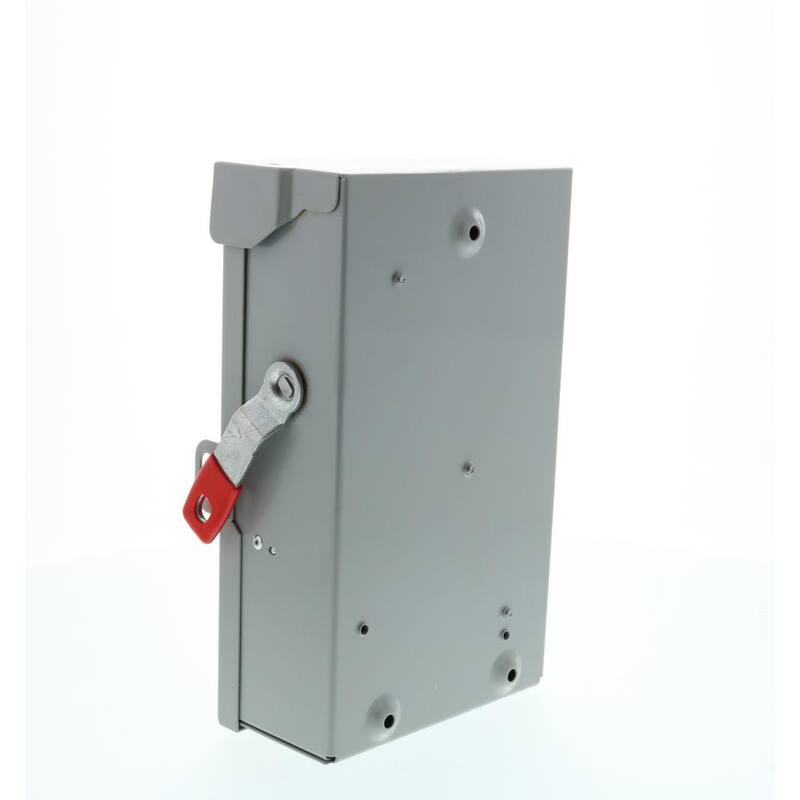

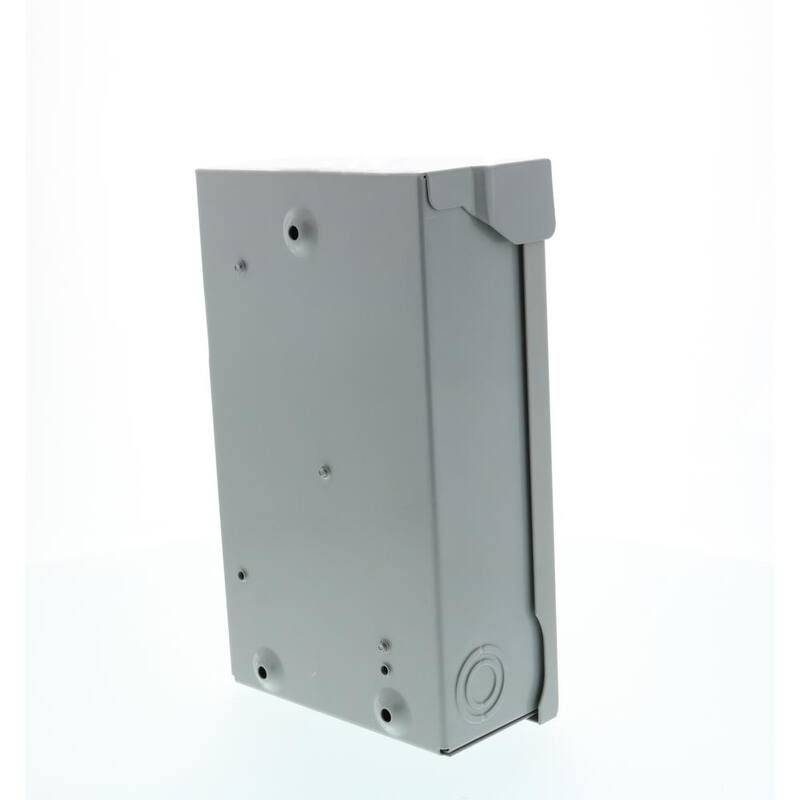

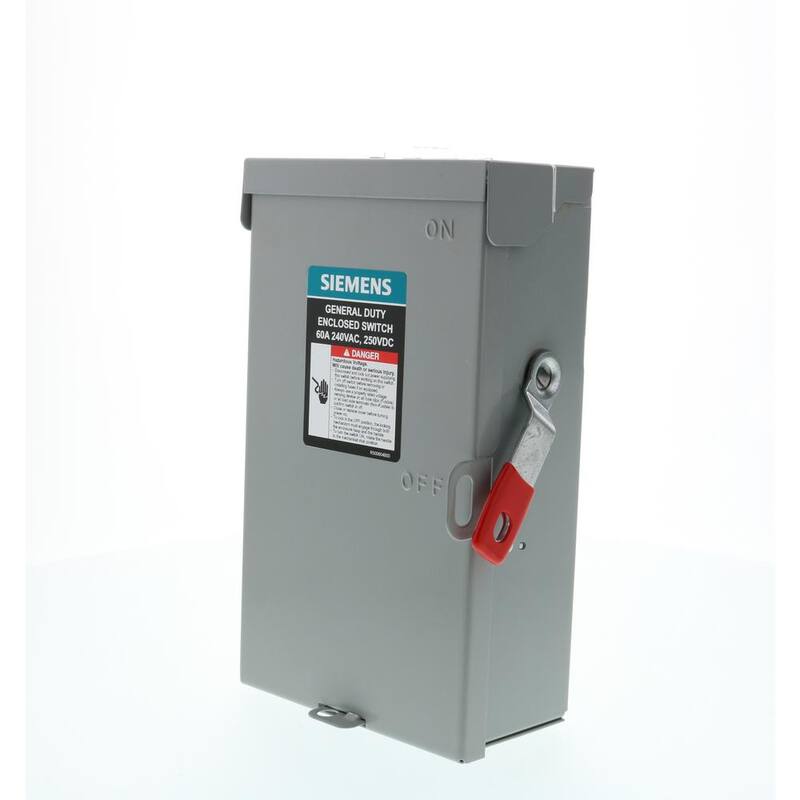

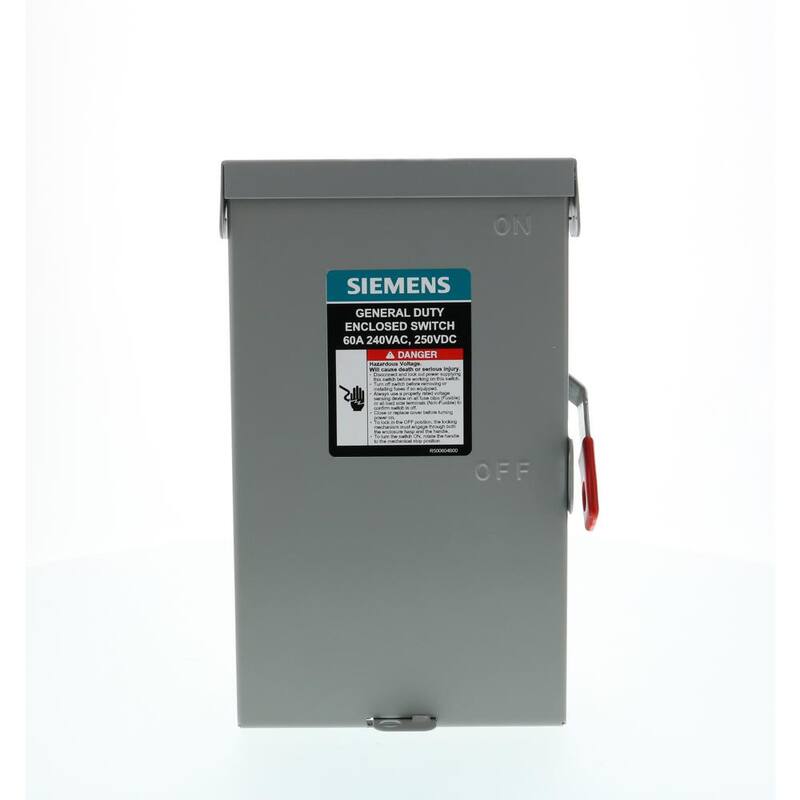

General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed. But where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000 Amp when used with Class R or T fuses or 10,000 Amp max when used with Class H fuses.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Safety Switch |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Fused | Fused |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 60 A |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 1 |
| Phase Type | 1 Phase |
| Power Distribution Features | Fusible |
| Product Weight (lb.) | 4 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 240 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | Standard Limited Warranty |
| Product Depth (in.) | 7 in |
| Product Height (in.) | 10 in |
| Product Width (in.) | 4 in |
