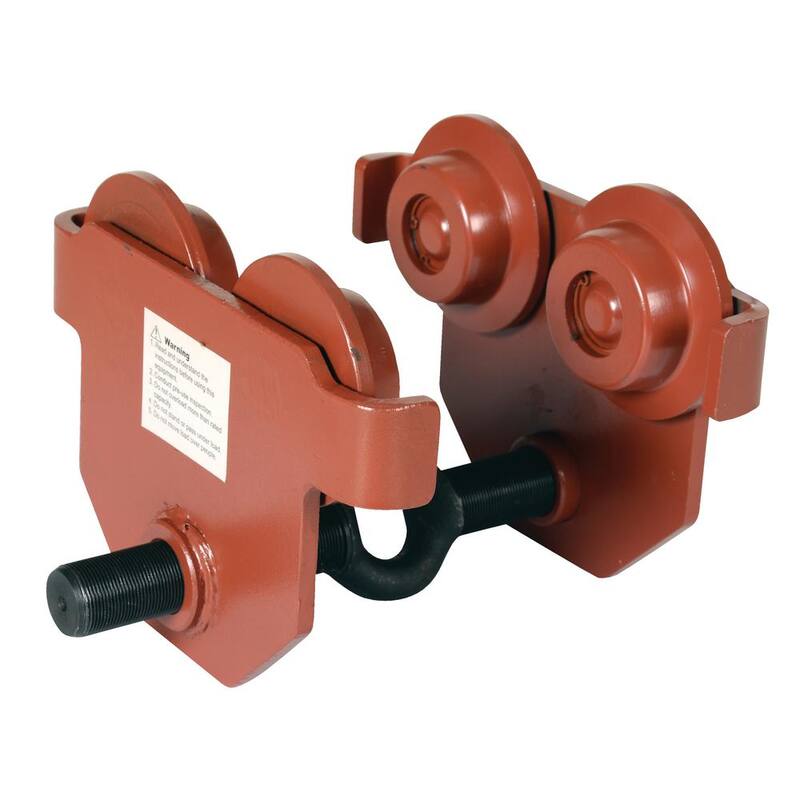

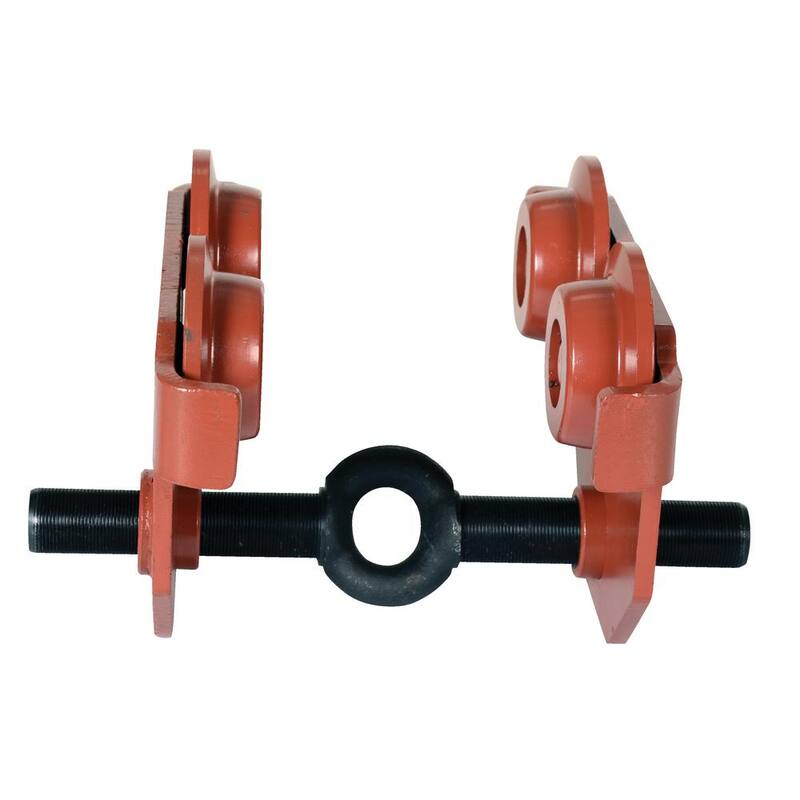

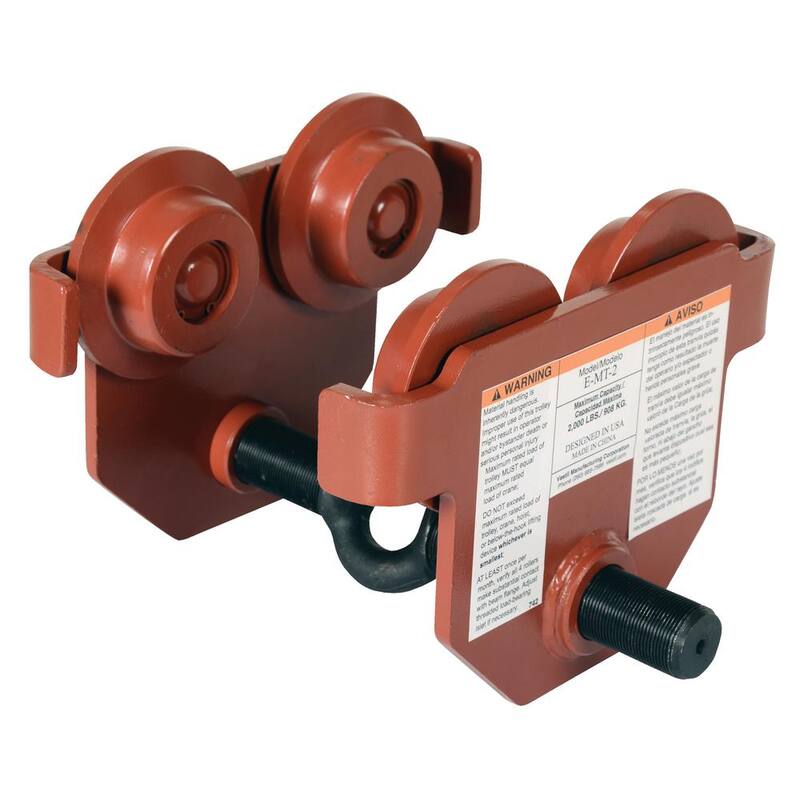

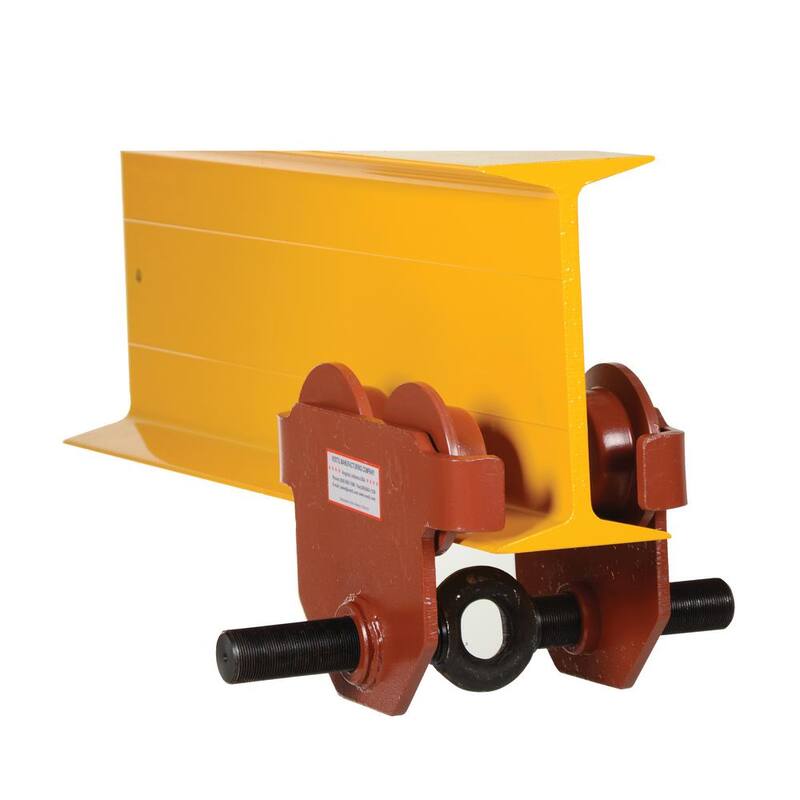

This Low Profile Manual Trolley has been designed to quickly install on virtually any S and H type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. This is a push trolley. The trolley includes 4 rollers. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish.
| Chain overhauled to lift load one foot (ft.) | 0 |
|---|---|
| Chain pull to lift rated load (lb.) | 2000 |
| Color Family | Orange |
| Features | Swivel Load Hook |
| General Part Type | Engine Hoist |
| Included | No Additional Items Included |
| Manual Chain Hoist Type | Hand |
| Material | Steel |
| Maximum Lift Height (in.) | 0 in |
| Mount type | Push Trolley |
| Number of chain strands | 1 |
| Product Weight (lb.) | 22 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Spark-resistant chain | No |
| Weight Capacity (lb.) | 2000 lb |
| Certifications and Listings | No Certifications or Listings |
| Manufacturer Warranty | 30 DAYS Limited warranty |
| Chain fall drop (ft.) | 0 |
| Product Depth (in.) | 9.625 in |
| Product Height (in.) | 7.5 in |
| Product Width (in.) | 12.125 in |
