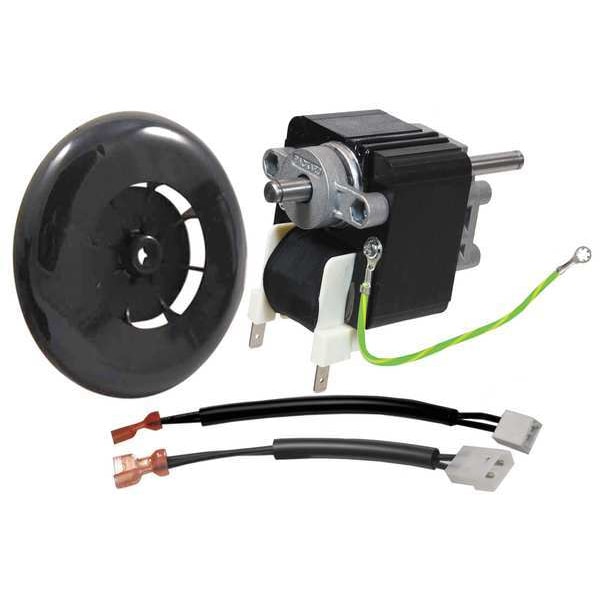

Combustion Motor Kit, 230, Copper, Plastic, Steel, 2 3/8 in W, 2 3/8 in H
| Item | Combustion Motor Kit |
|---|---|
| Type | Replacement |
| Voltage | 230 V |
| Depth (In.) | 5-1/4 |
| HP | 25 MHP |
| Construction Material | Copper, Plastic, Steel |
| Amps | 0.8 |
| Includes | Plastic Fan Blade, Special Lead and Plug |
| Height (In.) | 2-3/8 |
| For Use With Mfr. Model Number | HC24HE230 |
| Fits Brand | Carrier |
| Replaces | Carrier HC24HE-230, Carrier HC24HE230, Carrier J238-150-15103, Carrier J238-15161, Jakel J238-150-15103, Jakel J238-15161 |
| Agency Compliance | CSA, UL |
| Width (In.) | 2-3/8 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| Includes Motor | Yes |
| Overall Width | 2-3/8 in |
| Maximum Motor Horsepower | 1/40 hp |
| Maximum Inlet Air Temperature | 40 deg C |
| Motor Insulation Class | B |
| For Use With | Carrier, HC24HE230 |
| Compatible with Brand | Carrier, Jakel |
| Includes Mounting Hardware | Yes |
| Frequency | 60 Hz |
| Nameplate Voltage | 230V AC |
| Housing Material | Copper, Plastic; Steel |
| Replacement For Manufacturer Model Number | HC24HE230, J238-150-15103, J238-15161 |
| For Appliance Type | Furnaces |
| Overall Height | 2-3/8 in |
| Overall Depth | 5-1/4 in |
| Maximum Motor Speed | 3,000 rpm |
| OEM Replacement | Yes |
| Current | 0.8 A |
| Standards | UL Listed, CSA Certified |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
