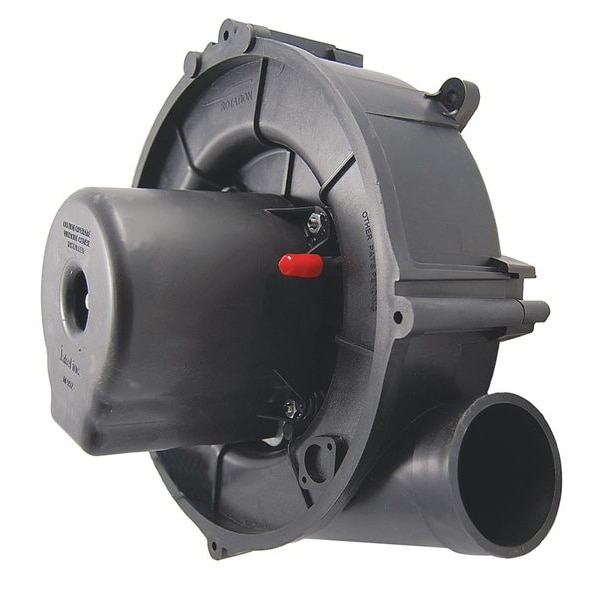

Draft Inducer, 115, Metal, 11 1/4 in W, 9 7/8 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 5-5/8 |
| HP | 50 MHP |
| Construction Material | Metal |
| Amps | 2.4 |
| Includes | OEM Kit |
| Height (In.) | 9-7/8 |
| Vent Pipe Dia. (In.) | 3.3 |
| For Use With Mfr. Model Number | 1012002, 1013388A, 1014338 |
| Fits Brand | ICP |
| Replaces | Fasco A067, Carrier 333710-751, Carrier 333710751, Emerson 3115, ICP 1012002, ICP 1013188, ICP 1013388A, ICP 1013388FA, ICP 1013915, ICP 1014338, ICP 1172823, ICP 329148-701, ICP 330701-701, Mars 10706, Rotom FB-RFB330, Rotom RFB330 |
| Agency Compliance | CSA, UL |
| Width (In.) | 11-1/4 |
| Application | Furnaces |
| Watts | 276 |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | TEFC |
| Frame | 3.3 |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| For Appliance Type | Furnaces |
| Replacement For Manufacturer Model Number | 1012002, 1013188, 1013388A, 1013388FA, 1013915, 1014338, 10706, 1172823, 3115, 329148-701, 330701-701, 333710751, A067, FB-RFB330, RFB330 |
| Maximum Inlet Air Temperature | 40 deg C |
| Motor Insulation Class | B |
| Includes Mounting Hardware | Yes |
| Housing Material | Plastic |
| Maximum Motor Horsepower | 1/20 hp |
| For Use With | 1012002, 1013388A, 1014338, ICP |
| Includes Motor | Yes |
| Compatible with Brand | Carrier, Emerson, Fasco, ICP, Mars, Rotom |
| Maximum Motor Speed | 3,000 rpm |
| Nameplate Voltage | 115V AC |
| Power Consumption | 276 W |
| Standards | UL Listed, CSA Certified |
| Overall Depth | 5-5/8 in |
| Overall Width | 11-1/4 in |
| Maximum Static Pressure | 0.125 in wc |
| Current | 2.4 A |
| OEM Replacement | Yes |
| Frequency | 60 Hz |
| Overall Height | 10-1/2 in |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
