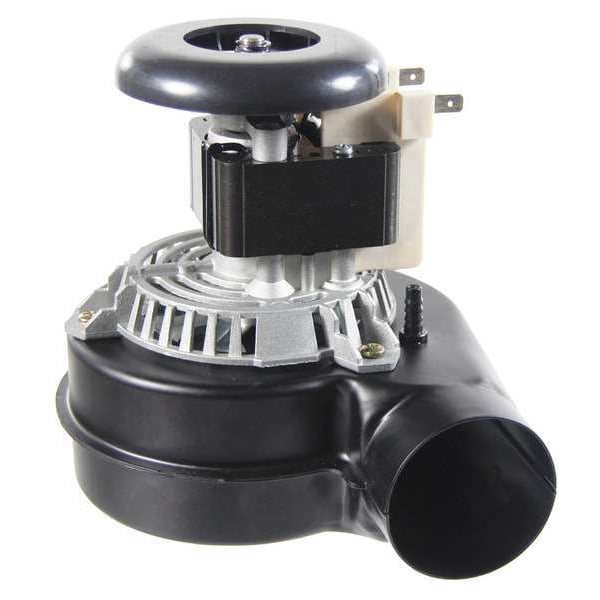

Draft Inducer, 115, Metal, 6 3/8 in W, 5 3/4 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 6 |
| HP | 1/60 hp |
| Construction Material | Metal |
| Amps | 1.3 |
| Includes | Slinger Fan |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 5-3/4 |
| Vent Pipe Dia. (In.) | 2 |
| For Use With Mfr. Model Number | 10K5101, 10K5301, 27K5201, 3120, 43K4101, 46K4101, 67M5401, 85L4901, 88K8401, J238-087-8165, J238-087-8171, J238-8171, R7-RFB43 |
| Fits Brand | Lennox, Emerson |
| Replaces | Fasco 7021-10108, Fasco 7021-11042, Fasco 7021-9242, Fasco 7021-9311, Fasco 7021-9335, Fasco 7021-9455, Fasco 7021-9593, Fasco 7021-9640, Fasco 7021-9657, Fasco A164, Emerson 3120, Lennox 10K5101, Lennox 10K5301, Lennox 10K5301P, Lennox 27K5201, Lennox 27K5201P, Lennox 43K4101, Lennox 85L4901, Lennox 88K8401, Lennox J238-087-8165, Lennox J238-087-8171, Lennox J238-8171, Lennox R7-RFB43, Lennox 7021-9311, Lennox 7021-9455, Lennox 7021-9593, Lennox 7021-9640, Lennox 7021-9657, Lennox 85L49, Lennox 43K4101P, Lennox 46K4101, Lennox 67M5401, Lennox 7021-10108, Lennox 7021-11042, Lennox 7021-9242, Mars 10707, Jakel J238-087-8165, Jakel J238-087-8171 |
| Agency Compliance | CSA, UL |
| Width (In.) | 6-3/8 |
| Application | Furnaces |
| Watts | 80 |
| Number of Speeds | 1 |
| RPM | 2,800 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | B |
| Overload Protection | Automatic |
| CFM @ 0.500-In. SP | 47 |
| CFM @ 0.000-In. SP | 65 |
| CFM @ 0.700-In. SP | 37 |
| Motor Type | Shaded Pole |
| For Fuel Type | Natural Gas |
| OEM Replacement | Yes |
| Overall Height | 5-7/8 in |
| Includes Mounting Hardware | Yes |
| Overall Width | 6-3/8 in |
| Frequency | 60 Hz |
| Compatible with Brand | Emerson, Fasco, Jakel, Lennox, Mars, Nidec, Rotom, US Motors |
| Maximum Inlet Air Temperature | 40 deg C |
| For Use With | 10K5101, 10K5301, 27K5201, 3120, 43K4101, 46K4101, 67M5401, 85L4901, 88K8401, Emerson, J238-087-8165, J238-087-8171, J238-8171, Lennox, R7-RFB43 |
| Standards | UL Listed, CSA Certified |
| Maximum Motor Horsepower | 1/60 hp |
| Includes Motor | Yes |
| Maximum Vent Pipe Diameter | 2 in |
| Phase | 1 |
| For Appliance Type | Furnaces |
| Current | 1.3 A |
| Overall Depth | 6 in |
| Nameplate Voltage | 120V AC |
| Motor Insulation Class | B |
| Replacement For Manufacturer Model Number | 10707, 10K5101, 10K5301, 10K5301P, 27K5201, 27K5201P, 3120, 43K4101, 43K4101P, 46K4101, 67M5401, 7021-10108, 7021-11042, 7021-9242, 7021-9311, 7021-9335, 7021-9455, 7021-9593, 7021-9640, 7021-9657, 85L49, 85L4901, 88K8401, A164, FB-RFB401, J238-087-8165, J238-087-8171, J238-8171, N164, R7-RFB43 |
| Power Consumption | 80 W |
| Maximum Motor Speed | 2,800 rpm |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
