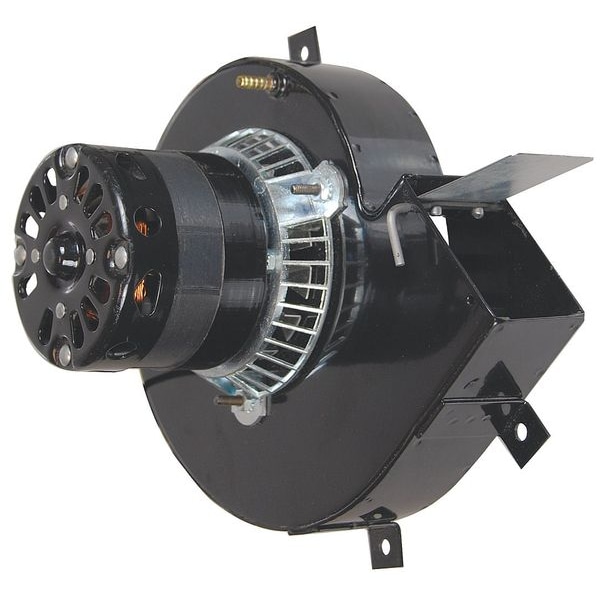

Draft Inducer, 115, Metal, 7 7/64 in W, 5 1/32 in H, 5/2.75 x 1.75 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 5/2.75 x 1.75 |
|---|---|
| Item | Draft Inducer |
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 7-43/64 |
| HP | 1/50 hp |
| Construction Material | Metal |
| Amps | 1 |
| Includes | Mounting Hardware, Gasket |
| Height (In.) | 5-1/32 |
| For Use With Mfr. Model Number | 433-00-510 |
| Fits Brand | Dunkirk |
| Replaces | Dunkirk 433-00-510 |
| Agency Compliance | CSA, UL |
| Width (In.) | 7-7/64 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Sleeve |
| Enclosure | Open |
| Frame | 3.3 |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| For Use With | 433-00-510, Dunkirk |
| Inlet Diameter | 5 in |
| Overall Height | 5 in |
| Outlet Width | 1-3/4 in |
| For Fuel Type | Natural Gas |
| Outlet Shape | Rectangular |
| Maximum Motor Speed | 3,000 rpm |
| Maximum Inlet Air Temperature | 40 deg C |
| Overall Width | 7 in |
| Current | 1 A |
| Compatible with Brand | Dunkirk |
| Outlet Diameter | Not Applicable |
| Nameplate Voltage | 115V AC |
| Housing Material | Steel |
| Motor Insulation Class | B |
| Outlet Height | 2-3/4 in |
| Includes Mounting Hardware | Yes |
| Overall Depth | 7-1/2 in |
| Maximum Motor Horsepower | 1/50 hp |
| Replacement For Manufacturer Model Number | 43300510 |
| Frequency | 60 Hz |
| Phase | 1 |
| Standards | UL Listed, CSA Certified |
| Includes Motor | Yes |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
