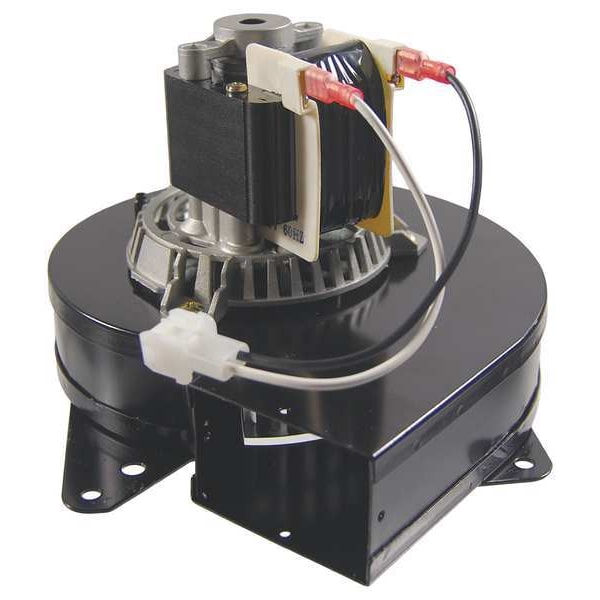

Draft Inducer, 115, Metal, 8 11/16 in W, 8 11/16 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 5-1/4 |
| HP | 1/30 |
| Construction Material | Metal |
| Amps | 1.2 |
| Includes | Blower, Gasket, Pressure Hose and Lead Extension with Plug |
| Height (In.) | 8-11/16 |
| For Use With Mfr. Model Number | 101202-01-01, 1023959-01, 24W95, 7002-2975, Lennox 31L5501 |
| Fits Brand | Lennox |
| Replaces | Fasco 7002-2975, Fasco A200, AllTemp FB-RFB495, Lennox 101202-01, Lennox 101202-1, Lennox 10120201, Lennox 102359-01, Lennox 24W95, Lennox 31L5501, Lennox 7002-2975, Lennox 77-149-00, Lennox lb-113219A, Lennox lb113219a |
| Agency Compliance | UL |
| Width (In.) | 8-11/16 |
| Application | Furnaces |
| Watts | 138 |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| Frequency | 60 Hz |
| Standards | UL Listed |
| For Use With | 101202-01-01, 1023959-01, 24W95, 7002-2975, Lennox 31L5501 |
| Housing Material | Metal |
| For Appliance Type | Furnaces |
| OEM Replacement | Yes |
| Overall Width | 8-5/8 in |
| Maximum Motor Horsepower | 1/30 hp |
| Overall Height | 8-5/8 in |
| Current | 1.2 A |
| Replacement For Manufacturer Model Number | 101202-1, 10120201, 102359-01, 24W95, 31L5501, 7002-2975, 77-149-00, A200, FB-RFB495, lb-113219A, N200 |
| Includes Mounting Hardware | Yes |
| Maximum Inlet Air Temperature | 40 deg C |
| Compatible with Brand | AllTemp, Fasco, Lennox, Nidec, US Motors |
| Maximum Motor Speed | 3,000 rpm |
| Phase | 1 |
| Overall Depth | 5-1/4 in |
| Nameplate Voltage | 115V AC |
| Power Consumption | 138 W |
| Includes Motor | Yes |
| Motor Insulation Class | B |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
