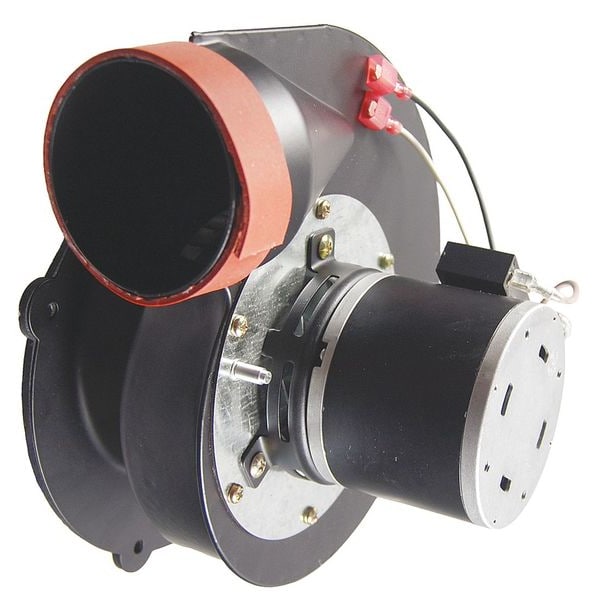

Draft Inducer, 115, Metal, 8 77/100 in W, 6 71/100 in H, 2.25/2.87 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 2.25/2.87 |
|---|---|
| Item | Draft Inducer |
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 9.08 |
| HP | 1/50 hp |
| Construction Material | Metal |
| Amps | 0.6 |
| Includes | Capacitor, Gasket |
| Remarks | Product Intended for Use and Installation by a Licensed Contractor |
| Height (In.) | 6.71 |
| Vent Pipe Dia. (In.) | 2.87 |
| For Use With Mfr. Model Number | 70-101087-01, 70-101087-81, 7021-11559 |
| Fits Brand | Rheem |
| Replaces | Rheem 70-101087-01, 70-101087-81, 7021-11559 |
| Agency Compliance | CUL |
| Width (In.) | 8.77 |
| Application | Furnaces |
| Watts | 70 |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | 3.3 |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| CFM @ 0.500-In. SP | 72 |
| CFM @ 1.40-In. SP | 30 |
| CFM @ 0.700-In. SP | 65 |
| CFM @ 0.000-In. SP | 82 |
| CFM @ 1.000-In. SP | 58 |
| Outlet Width | Not Applicable |
| Overall Depth | 9 in |
| Inlet Diameter | 2-1/4 in |
| Phase | 1 |
| Nameplate Voltage | 115V AC |
| Maximum Motor Horsepower | 1/50 hp |
| Current | 0.6 A |
| Frequency | 60 Hz |
| Overall Width | 8-3/4 in |
| Replacement For Manufacturer Model Number | 70-101087-01, 70-101087-81, 7021-11559, N781 |
| Maximum Vent Pipe Diameter | 2.8 in |
| Compatible with Brand | Fasco, Nidec, Rheem, US Motors |
| Housing Material | Steel |
| Maximum Motor Speed | 3,000 rpm |
| Outlet Shape | Round |
| Outlet Height | Not Applicable |
| Maximum Inlet Air Temperature | 40 deg C |
| Standards | UL Listed, CSA Certified |
| For Fuel Type | Natural Gas |
| Includes Motor | Yes |
| For Use With | 70-101087-01, 70-101087-81, 7021-11559, Rheem |
| Motor Insulation Class | B |
| Overall Height | 6-5/8 in |
| Outlet Diameter | 2-3/4 in |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
