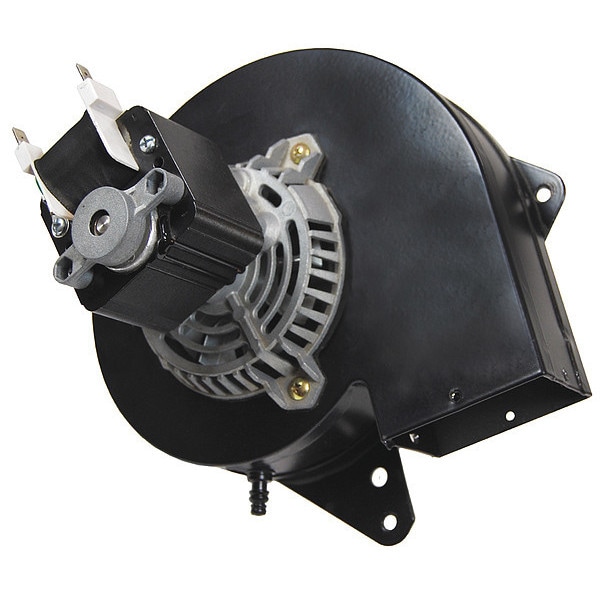

Draft Inducer, 115, Metal, 8 7/8 in W, 8 3/4 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 4-1/2 |
| HP | 1/35 |
| Construction Material | Metal |
| Amps | 1.2 |
| Includes | Gasket |
| Height (In.) | 8-3/4 |
| For Use With Mfr. Model Number | 0131M00002P, 0131M0002S, 119276-00 |
| Fits Brand | Goodman |
| Replaces | Century (Formerly A. O. Smith) 0131M00002P, Century (Formerly A. O. Smith) 0131M00002S, Fasco 7058-1407, Goodman 0131M00002P, Goodman 0131M00002PSP, Goodman 0131M00002S, Goodman B4059001, Mars 10553, Jakel 0131M00002P, Jakel 0131M00002S, Rotom FB-RFB276, Rotom RFB276, Johnstone S89-811 |
| Agency Compliance | UL, CSA |
| Width (In.) | 8-7/8 |
| Application | Furnaces |
| Watts | 138 |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | H |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| Housing Material | Metal |
| Power Consumption | 138 W |
| Replacement For Manufacturer Model Number | 0131M00002P, 0131M00002PSP, 0131M00002S, 10553, 7058-1407, B4059001, B4059003, B4059003S, FB-RFB276, RFB276, S89-811 |
| Overall Width | 8-7/8 in |
| Phase | 1 |
| Frequency | 60 Hz |
| Includes Motor | Yes |
| Maximum Inlet Air Temperature | 40 deg C |
| Compatible with Brand | Century, Fasco, Goodman, Jakel, Johnstone, Mars, Rotom |
| Overall Depth | 4-1/4 in |
| Current | 1.2 A |
| Motor Insulation Class | H |
| For Appliance Type | Furnaces |
| For Use With | 0131M00002P, 0131M0002S, 119276-00, Goodman |
| Maximum Motor Speed | 3,000 rpm |
| Maximum Motor Horsepower | 1/35 hp |
| Overall Height | 8-3/4 in |
| Nameplate Voltage | 115V AC |
| Standards | UL Listed, CSA Certified |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
