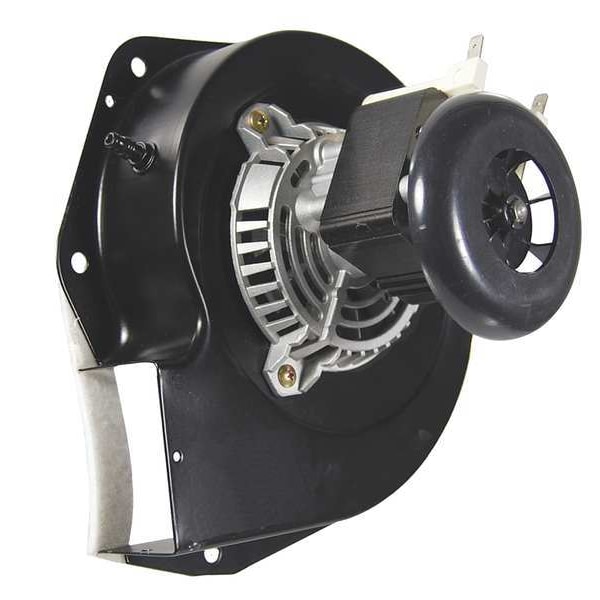

Draft Inducer, 115, Metal, 9 1/4 in W, 6 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 8-1/4 |
| HP | 1/30 |
| Construction Material | Metal |
| Amps | 1.5 |
| Includes | Gasket |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 6 |
| Fits Brand | Goodman |
| Replaces | Fasco 7002-3036, Emerson 3105, Goodman 10702, Goodman 3105, Goodman 7002-3036, Goodman B40590-00, Goodman B4059000, Goodman B4059000S, Goodman J238-11195, Goodman J238-112-11195, Mars 10702, Jakel J238-11195, Jakel J238-112-11195 |
| Agency Compliance | CSA, UL |
| Width (In.) | 9-1/4 |
| Application | Furnaces |
| For Use With Mfr. Model Number | B4059000 |
| Motor Type | Shaded Pole |
| Number of Speeds | 1 |
| Enclosure | Open |
| Frame | 3.3 |
| Overload Protection | Automatic |
| Bearings | Ball |
| Class | B |
| RPM | 3,000 |
| Maximum Motor Horsepower | 1/30 hp |
| For Use With | B4059000, Goodman |
| Includes Motor | Yes |
| Includes Mounting Hardware | Yes |
| Maximum Static Pressure | 0.125 in wc |
| For Fuel Type | Natural Gas |
| Overall Width | 9-1/4 in |
| Replacement For Manufacturer Model Number | 10702, 3105, 7002-3036, B4059000, B4059000S, FB-RFB405, J238-11195, J238-112-11195, N182 |
| Current | 1.5 A |
| Nameplate Voltage | 115V AC |
| Motor Insulation Class | B |
| Maximum Motor Speed | 3,000 rpm |
| Frequency | 60 Hz |
| Overall Height | 5-7/8 in |
| For Appliance Type | Furnaces |
| Maximum Inlet Air Temperature | 40 deg C |
| Standards | UL Listed, CSA Certified |
| OEM Replacement | Yes |
| Compatible with Brand | AllTemp, Emerson, Fasco, Goodman, Jakel, Mars, Nidec, Rotom, US Motors |
| Phase | 1 |
| Housing Material | Metal |
| Overall Depth | 8-1/4 in |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
