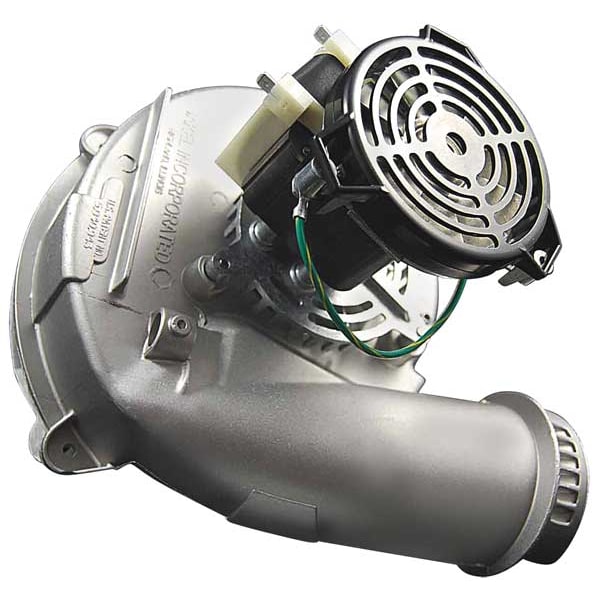

Draft Inducer, 115, Metal Housing, 11 1/4 in W, 7 in H
| Item | Draft Inducer |
|---|---|
| Voltage | 115 V |
| Depth (In.) | 11-1/4 |
| Construction Material | Metal Housing |
| Amps | 1.7 |
| Includes | Gasket |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 7 |
| For Use With Mfr. Model Number | 117104-01, 117847-07, 70-22838-82, 70-24157-03 |
| Fits Brand | Rheem |
| Replaces | Packard 66838, Fasco 7062-2615, Fasco 7062-4534, Fasco 7062-4702, Fasco A066, Fasco A066B, Rheem 117104-01, Rheem 117104-08, Rheem 117847-07, Rheem 4MF46, Rheem 5C089, Rheem 70-22162-81, Rheem 7062-4702, Rheem FB-RFB142, Rheem 70-22838-02, Rheem 70-22838-82, Rheem 70-24149-01, Rheem 70-24157-03, Rheem 70-24175-81, Rheem 7062-4534, ICP 1690042, Ametek 117104-01, Ametek 117104-08, Ametek 117847-07 |
| Agency Compliance | UL, CSA |
| Width (In.) | 11-1/4 |
| Application | Furnaces |
| Watts | 28 |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| Frequency | 60 Hz |
| Overall Width | 11-1/4 in |
| Housing Material | Metal |
| Overall Height | 9 in |
| OEM Replacement | Yes |
| For Use With | 117104-01, 117847-07, 70-22838-82, 70-24157-03, Rheem |
| Overall Depth | 11-1/4 in |
| Compatible with Brand | Ametek, Fasco, ICP, Nidec, Packard, Rheem, US Motors |
| Motor Insulation Class | B |
| For Appliance Type | Furnaces |
| Current | 1.7 A |
| Nameplate Voltage | 120V AC |
| Standards | UL Listed, CSA Certified |
| Maximum Inlet Air Temperature | 40 deg C |
| For Fuel Type | Natural Gas |
| Includes Motor | Yes |
| Maximum Motor Horsepower | 1/30 hp |
| Maximum Motor Speed | 3,000 rpm |
| Phase | 1 |
| Replacement For Manufacturer Model Number | 117104-01, 117104-08, 117847-07, 1690042, 4MF46, 5C089, 66838, 70-22162-81, 70-22838-02, 70-22838-82, 70-24149-01, 70-24157-03, 70-24175-81, 7062-2615, 7062-4534, 7062-4702, A066, A066B, FB-RFB142, N066 |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
