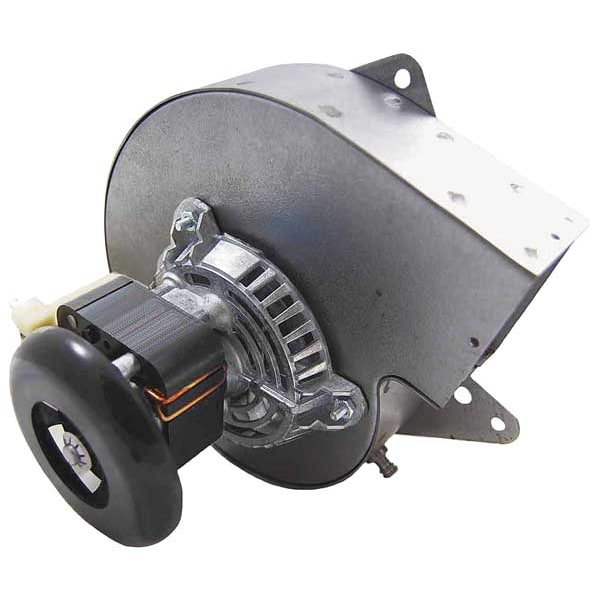

Draft Inducer, 115, Metal Housing, 11 1/4 in W, 9 1/2 in H
| Item | Draft Inducer |
|---|---|
| Voltage | 115 V |
| Depth (In.) | 11-1/4 |
| Construction Material | Metal Housing |
| Amps | 1.6 |
| Includes | Gasket |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 9-1/2 |
| For Use With Mfr. Model Number | B1859005, J238-11128 |
| Fits Brand | Goodman |
| Replaces | Fasco 7002-2307, Fasco 7002-2771, Fasco 7002-3219, Fasco 70022307, Fasco 70022771, Fasco 70023219, Fasco 7058-0229, Emerson 2569, Emerson 3106, Emerson F33JCS-3655, Goodman 4MH09, Goodman 7002-2307, Goodman 7002-2771, Goodman 7002-3219, Goodman 7058-0229, Goodman B1859005, Goodman B1859005S, Goodman B40590-35, Goodman J238-11128, Goodman J238-112-11128, Goodman R7-RFB185, Industry No. 3105, Mars 10703, Jakel J238-11128, Jakel J238-112-11128, Jakel J238-112-11195, Rotom FB-RFB185, Rotom FB-RFB595, Rotom RFB185, Rotom RFB595 |
| Agency Compliance | UL, CSA |
| Width (In.) | 11-1/4 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| For Use With | B1859005, Goodman, J238-11128 |
| Overall Width | 11-1/4 in |
| Motor Insulation Class | B |
| Nameplate Voltage | 115V AC |
| For Fuel Type | Natural Gas |
| Replacement For Manufacturer Model Number | 10703, 2569, 3105, 3106, 4MH09, 7002-2307, 7002-2771, 7002-3219, 70022307, 70022771, 70023219, 7058-0229, B1859005, B1859005S, B40590-35, F33JCS-3655, FB-RFB185, FB-RFB595, FB-RFB859, J238-11128, J238-112-11128, J238-112-11195, N157, R7-RFB185, RFB185, RFB595 |
| Maximum Motor Horsepower | 1/30 hp |
| OEM Replacement | Yes |
| For Appliance Type | Furnaces |
| Compatible with Brand | AllTemp, Emerson, Fasco, Goodman, Jakel, Mars, Nidec, Rotom, US Motors |
| Maximum Inlet Air Temperature | 40 deg C |
| Standards | UL Listed, CSA Certified |
| Overall Depth | 11-1/4 in |
| Overall Height | 8-5/8 in |
| Maximum Motor Speed | 3,000 rpm |
| Current | 1.6 A |
| Housing Material | Metal |
| Includes Motor | Yes |
| Frequency | 60 Hz |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
