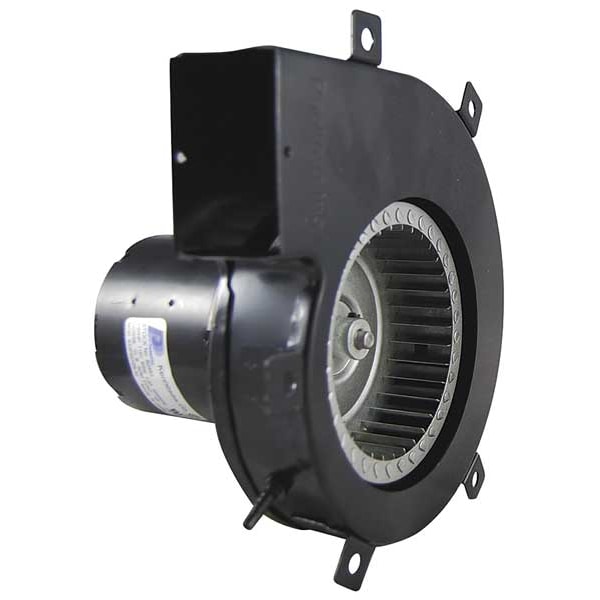

Draft Inducer, 115, Metal Housing, 9 1/4 in W, 7 in H
| Item | Draft Inducer |
|---|---|
| Voltage | 115 V |
| Depth (In.) | 10-1/4 |
| Construction Material | Metal Housing |
| Amps | 0.9 |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 7 |
| For Use With Mfr. Model Number | 70-21496-01, 70-21496-83, 70-21504-03, 70-21504-04, 70-2496-03, B1859000 |
| Fits Brand | Goodman, Rheem |
| Replaces | Goodman B1859000, Rheem 70-21496-01, 70-21496-83, 70-21504-03, 70-21504-04, 70-2496-03 |
| Agency Compliance | UL |
| Width (In.) | 9-1/4 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | 3.3 |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| Current | 0.9 A |
| OEM Replacement | Yes |
| Replacement For Manufacturer Model Number | 4MH15, 4MH21, 577, 70-21496-00, 70-21496-03, 70-21496-06, 70-21496-83, 70-2150-03, 70-2150-04, 70-21504-03, 70-21504-04, 7021-10262, 7021-5004, 7021-5615, 7021-6804, 70215004, 702150403, 74-70-21496-03, 74-70-21496-03-01, 74702150403, 9438, A079, B1859000, B1859000S, FB-RFB214, JAIM137, MOT-3482, RH702149603, RH702149683 |
| Motor Insulation Class | B |
| Nameplate Voltage | 115V AC |
| Phase | 1 |
| Frequency | 60 Hz |
| Includes Mounting Hardware | Yes |
| Overall Depth | 10-1/4 in |
| Housing Material | Metal |
| Maximum Motor Speed | 3,000 rpm |
| Includes Motor | Yes |
| Maximum Inlet Air Temperature | 40 deg C |
| For Appliance Type | Furnaces |
| Maximum Static Pressure | 0.125 in wc |
| For Fuel Type | Natural Gas |
| Standards | UL Listed |
| Overall Height | 5-1/2 in |
| For Use With | 70-21496-01, 70-21496-83, 70-21504-03, 70-21504-04, 70-2496-03, B1859000, Goodman, Rheem |
| Maximum Motor Horsepower | 1/50 hp |
| Overall Width | 9-1/4 in |
| Compatible with Brand | AllTemp, Fasco, Goodman, Nordyne, Rheem, Trane, Universal |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
