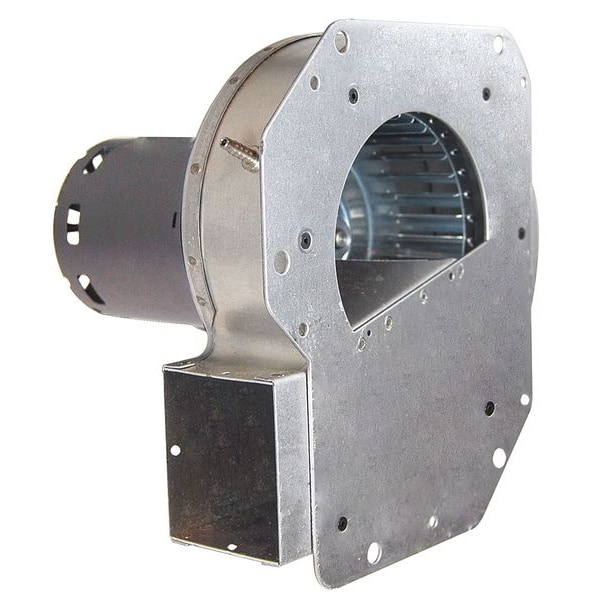

Draft Inducer, 115, Steel, 7 7/64 in W, 6 45/64 in H, 4/2.5x2.2 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 4/2.5x2.2 |
|---|---|
| Item | Draft Inducer |
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 8-5/16 |
| HP | 1/50 hp |
| Construction Material | Steel |
| Amps | 0.92 |
| Height (In.) | 6-45/64 |
| For Use With Mfr. Model Number | 11009001, 11009002, 11009003 |
| Fits Brand | Goodman |
| Replaces | Goodman 11009001, 11009002, 11009003 |
| Agency Compliance | CSA, UL |
| Width (In.) | 7-7/64 |
| Application | Furnaces |
| Includes Motor | Yes |
| For Fuel Type | Natural Gas |
| Housing Material | Steel |
| Maximum Motor Speed | 3,250 rpm |
| Current | 0.92 A |
| Outlet Width | 2-1/8 in |
| Overall Width | 7 in |
| Replacement For Manufacturer Model Number | 098862-1, 0988621-1, 11009001, 11009002, 11009003, 7021-10272, 7021-7006, 7021-7259, 7021-9064, 7021-9259, 7021-9574, 7021-9924, 702110272, 70219064, 70219259, 70219574, 70219924, D68862-1, R7-RFB129 |
| Maximum Inlet Air Temperature | 40 deg C |
| Includes Mounting Hardware | Yes |
| Outlet Diameter | Not Applicable |
| Frequency | 60 Hz |
| Overall Height | 6-5/8 in |
| Motor Type | Permanent Split Capacitor |
| Maximum Motor Horsepower | 1/20 hp |
| Compatible with Brand | Amana, Fasco, Goodman, Rotom |
| Outlet Height | 2-1/2 in |
| Phase | 1 |
| Inlet Diameter | 4 in |
| Overall Depth | 8-1/4 in |
| For Use With | 11009001, 11009002, 11009003, Goodman |
| Motor Insulation Class | B |
| Standards | UL Listed, CSA Certified |
| Outlet Shape | Rectangular |
| Nameplate Voltage | 115V AC |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
