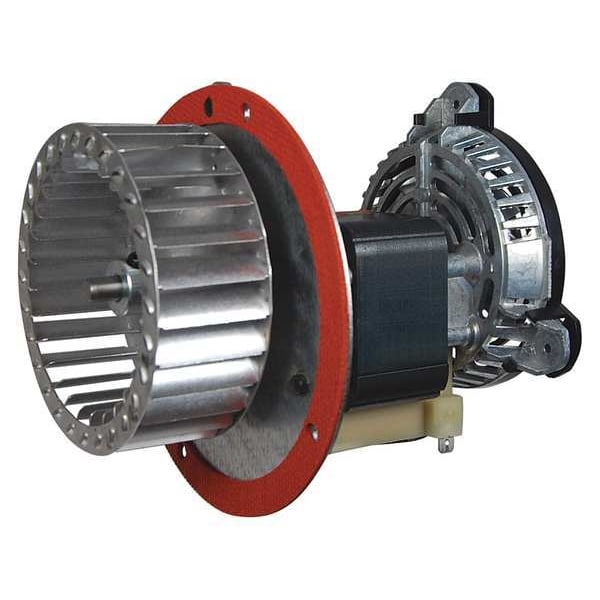

Draft Inducer, 208/230, Metal, 5 1/4 in W, 4 1/4 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 208/230 |
| Depth (In.) | 5-1/4 |
| HP | 0.038 |
| Construction Material | Metal |
| Amps | 0.8 |
| Includes | Blower Wheel, Gasket |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 4-1/4 |
| For Use With Mfr. Model Number | HC24HE230 |
| Fits Brand | Carrier |
| Replaces | Carrier 48SS400626, Carrier HC24HE230, Carrier J238-150-15103, Mars 10709, Jakel J238-15015103, Bryant 312130-701 |
| Agency Compliance | UL |
| Width (In.) | 5-1/4 |
| Application | Furnaces |
| Watts | 28 |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| Motor Insulation Class | B |
| Includes Motor | Yes |
| Includes Mounting Hardware | Yes |
| Overall Width | 5-1/4 in |
| Maximum Motor Speed | 3,000 rpm |
| Current | 0.8 A |
| Maximum Inlet Air Temperature | 40 deg C |
| OEM Replacement | Yes |
| Standards | UL Listed |
| Replacement For Manufacturer Model Number | 10709, 312130-701, 48SS400626, HC24HE230, J238-150-15103 |
| Nameplate Voltage | 208-230V AC |
| Housing Material | Metal |
| Overall Depth | 6-1/8 in |
| Overall Height | 4-1/4 in |
| For Fuel Type | Natural Gas |
| Phase | 1 |
| Frequency | 60 Hz |
| For Appliance Type | Furnaces |
| Maximum Motor Horsepower | 19/500 hp |
| Compatible with Brand | Bryant, Carrier, Jakel, Mars |
| For Use With | Carrier, HC24HE230 |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
