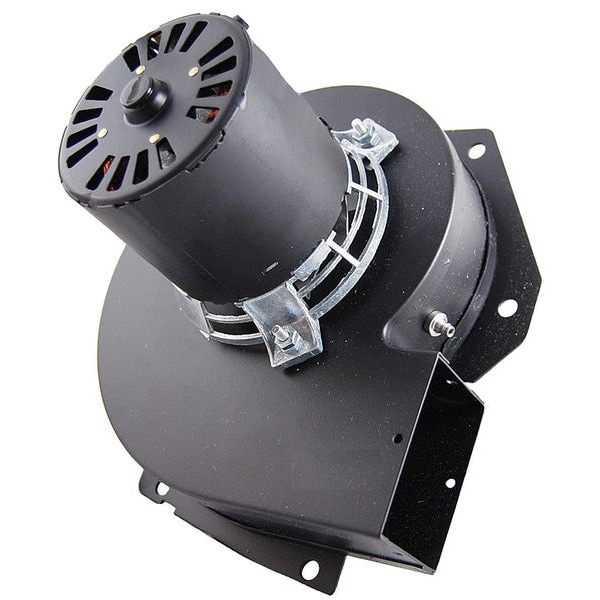

Draft Inducer, 208/230, Metal, 7 39/64 in W, 8 11/16 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 208/230 |
| Depth (In.) | 5-5/64 |
| Cut Out Required | 4-29/32 in |
| HP | 1/25 hp |
| Construction Material | Metal |
| Amps | 0.25 |
| Includes | 1.5 MFD Capacitor, Gasket |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 8-11/16 |
| Vent Pipe Dia. (In.) | 3.3 |
| For Use With Mfr. Model Number | CDV156B |
| Fits Brand | Rheem |
| Replaces | Fasco 7021-9567, Fasco 702364186, Rheem 70-23563-02, Rheem 70-23586-01, Rheem 70-23586-81, Rheem 70-23641-01, Rheem 70-23641-81, Rheem 7021-9567, Industry No. 70-23641-01 |
| Agency Compliance | CSA, UL |
| Width (In.) | 7-39/64 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,200 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | 3.3 |
| Class | B |
| Overload Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Maximum Motor Speed | 3,200 rpm |
| For Use With | 70-23641-81, Rheem |
| Maximum Inlet Air Temperature | 40 deg C |
| Compatible with Brand | AllTemp, Fasco, Rheem |
| Cutout Size | 4 29/32 in |
| OEM Replacement | Yes |
| Housing Material | Steel, Copper |
| Current | 0.25 A |
| For Appliance Type | Furnaces |
| Standards | UL Listed, CSA Certified |
| Nameplate Voltage | 208-230V AC |
| Phase | 1 |
| Maximum Motor Horsepower | 1/25 hp |
| Motor Insulation Class | B |
| Overall Width | 7-1/2 in |
| Includes Motor | Yes |
| Overall Depth | 5 in |
| For Fuel Type | Natural Gas |
| Replacement For Manufacturer Model Number | 70-23563-02, 70-23586-01, 70-23586-81, 70-23641-01, 70-23641-81, 7021-9567, 702364186, FB-RFB641, Industry No. 70-23641-01 |
| Frequency | 60 Hz |
| Overall Height | 8-1/2 in |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
