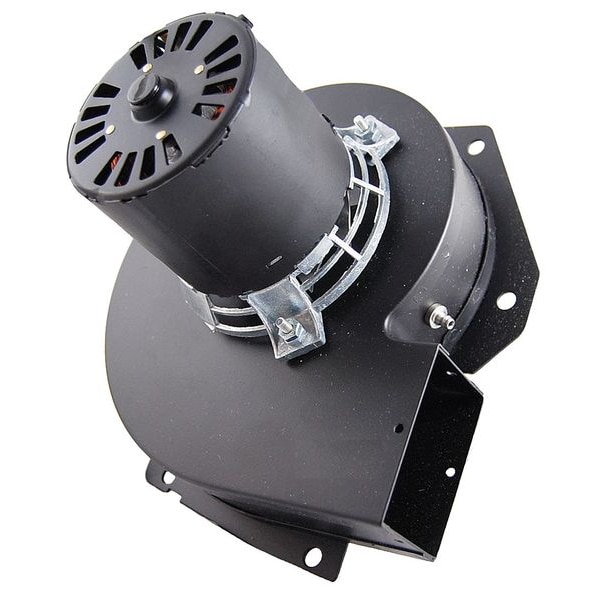

Draft Inducer, 208/230, Metal, 7 39/64 in W, 8 11/16 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 208/230 |
| Depth (In.) | 5-49/64 |
| Cut Out Required | 4-29/32 in |
| HP | 1/30 hp |
| Construction Material | Metal |
| Amps | 0.65 |
| Includes | Mounting hardware |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 8-11/16 |
| Fits Brand | York |
| Replaces | Fasco 7021-10096, Fasco 7021-9656, York 026-33999-001, Source 1 S1-026-33999-01 |
| Agency Compliance | CSA, UL |
| Width (In.) | 7-39/64 |
| Application | Furnaces |
| For Use With Mfr. Model Number | 026-33999-001 |
| Class | B |
| RPM | 3,200 |
| Number of Speeds | 1 |
| Frame | 3.3 |
| Bearings | Sleeve |
| Motor Type | Shaded Pole |
| Enclosure | Open |
| Overload Protection | Automatic |
| Includes Mounting Hardware | Yes |
| Overall Depth | 5-3/4 in |
| For Use With | 026-33999-001, York |
| For Appliance Type | Furnaces |
| Phase | 1 |
| Replacement For Manufacturer Model Number | 026-33999-001, 1 S1-026-33999-01, 7021-10096, 7021-9656 |
| Motor Insulation Class | B |
| For Fuel Type | Natural Gas |
| Standards | UL Listed |
| Overall Height | 5 in |
| Maximum Inlet Air Temperature | 40 deg C |
| Housing Material | Steel, Copper |
| OEM Replacement | Yes |
| Cutout Size | 4 29/32 in |
| Compatible with Brand | Fasco, Source, York |
| Maximum Motor Speed | 3,200 rpm |
| Overall Width | 7-1/2 in |
| Maximum Motor Horsepower | 1/30 hp |
| Includes Motor | Yes |
| Nameplate Voltage | 208-230V AC |
| Current | 0.24 A |
| Frequency | 60 Hz |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
