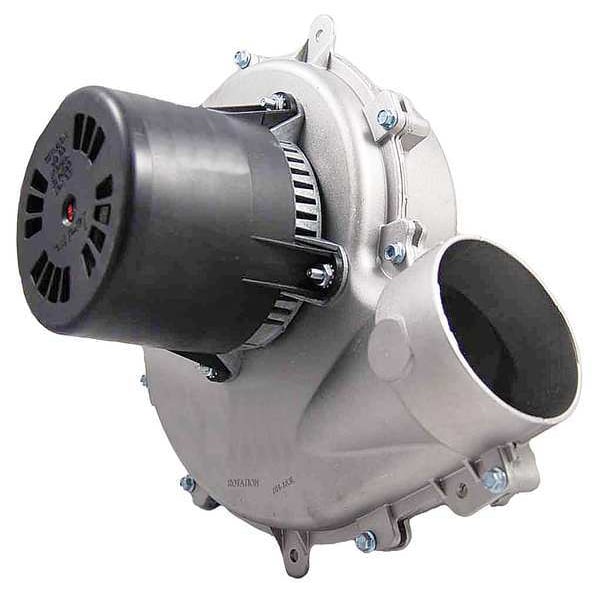

Draft Inducer, 230, Metal, 8 13/16 in W, 10 in H
| Item | Draft Inducer |
|---|---|
| Type | Replacement |
| Voltage | 230 V |
| Depth (In.) | 6-3/8 |
| HP | 1/50 hp |
| Construction Material | Metal |
| Amps | 0.3 |
| Includes | Capacitor |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 10 |
| Vent Pipe Dia. (In.) | 3.3 |
| For Use With Mfr. Model Number | 1010008, 1085571, 1085571P, 1110008, 119254-00, 3114, 7021-10048, 7021-10580 |
| Fits Brand | Goodman, ICP, Emerson |
| Replaces | Johnson Furnace 48HWC181, Johnson Furnace 66HWC241, Johnson Furnace 66HWC24A, Johnson Furnace 66HWC301, Johnson Furnace 8973C, Johnson Furnace 60HWC241, Johnson Furnace 60HWC24A, Johnson Furnace 60HWC301, Johnson Furnace 60HWC30A, Johnson Furnace 66HW, Johnson Furnace 66HWC181, Johnson Furnace 48HWC18A, Johnson Furnace 48HWC241, Johnson Furnace 48HWC24A, Johnson Furnace 60HW, Johnson Furnace 60HWC181, Johnson Furnace 60HWC18A, Magnetek 464, Universal 464, Universal 999, Universal DE3L038, Amana D69964-3, Amana D69964-4, Amana D6996403, Armstrong 322P859, Armstrong 35035B1, Armstrong 35HWC181, Armstrong 36HW, Armstrong 36HWC18A, Armstrong 36HWC241, Armstrong 66HWC301, Armstrong 7021-10264, Armstrong 60HWC30A, Armstrong 66HW, Armstrong 66HWC181, Armstrong 66HWC18A, Armstrong 66HWC241, Armstrong 66HWC24A, Armstrong 60HW, Armstrong 60HWC181, Armstrong 60HWC18A, Armstrong 60HWC241, Armstrong 60HWC24A, Armstrong 60HWC301, |
| Agency Compliance | CSA, UL |
| Width (In.) | 8-13/16 |
| Application | Furnaces |
| Watts | 100 |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | 3.3 |
| Class | B |
| Overload Protection | Automatic |
| CFM @ 1.40-In. SP | 40 |
| CFM @ 0.700-In. SP | 68 |
| CFM @ 0.500-In. SP | 75 |
| CFM @ 0.000-In. SP | 94 |
| CFM @ 1.000-In. SP | 55 |
| Motor Type | Permanent Split Capacitor |
| Overall Height | 10 in |
| Includes Motor | Yes |
| Includes Mounting Hardware | Yes |
| Replacement For Manufacturer Model Number | 1010008, 1085571, 1085571P, 1110008, 119254-00, 3114, 7021-10048, 7021-10580, A169, N169 |
| Maximum Motor Horsepower | 1/50 hp |
| Maximum Inlet Air Temperature | 40 deg C |
| Motor Insulation Class | B |
| Overall Width | 8-3/4 in |
| Power Consumption | 100 W |
| For Use With | 1010008, 1085571, 1085571P, 1110008, 119254-00, 3114, 7021-10048, 7021-10580, Emerson, Goodman, ICP |
| Maximum Vent Pipe Diameter | 2.7 in |
| Phase | 1 |
| Overall Depth | 6-1/4 in |
| Frequency | 60 Hz |
| Maximum Static Pressure | 0.125 in wc |
| For Appliance Type | Furnaces |
| Maximum Motor Speed | 3,000 rpm |
| Compatible with Brand | Emerson, Fasco, Goodman, ICP, Nidec, US Motors |
| Standards | UL Listed, CSA Certified |
| Nameplate Voltage | 230V AC |
| For Fuel Type | Natural Gas |
| OEM Replacement | Yes |
| Current | 0.3 A |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
