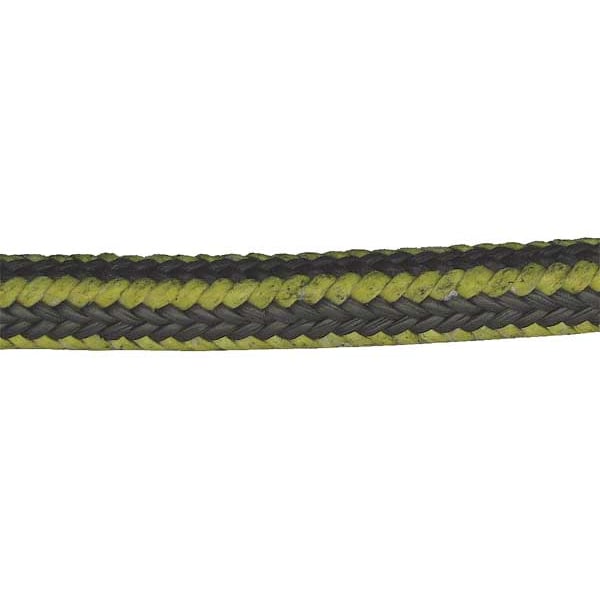

Packing Seal, 1/2 Sq In., 5 Ft
| Item - Packing Seals | Compression Packing Seal |
|---|---|
| Square (In.) | 1/2 |
| Length | 5 ft |
| Material | Expanded PTFE with Graphite and Aramid Corners |
| Lubrication - Packing Seals | Yes |
| Max. Pressure for Pumps (PSI) | 700 |
| Max. Pressure for Valves (PSI) | NR |
| Industry - Packing Seals | Slurry/Mining or Asphalt |
| For Use In - Packing Seals | Pumps |
| Max. Shaft Speed (ft/min) | 2,700 fpm |
| Item | Compression Packing Seal |
| For Use In | Pumps |
| Ambient Temp. Range (F) | -10 to 500 |
| Color | Black |
| pH Range | 3 to 11 |
| Max. Temp in Steam (F) | NR |
| Application | Used in Abrasive Slurry Applications. Also Used As End Rings |
| Standards | OSHA, RoHS |
| Features | Aramid Corners Provide Strength and Extrusion Resistance |
| Shaft Speed - Maximum | 2,700 fpm |
| Includes | Lubrication |
| pH - Maximum | 11 pH |
| Packing Seal Size | 0.5 sq in |
| Temperature in Steam - Maximum | Not Rated |
| Overall Length | 5 ft |
| pH - Minimum | 3 pH |
| Seal Material | PTFE, Graphite, Aramid |
| Ambient Temperature - Minimum | -10 deg F |
| Pressure for Valves - Maximum | Not Rated |
| Pressure for Pumps - Maximum | 700 psi |
| Product Type | Compression Packing Seal |
| Ambient Temperature - Maximum | 500 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
