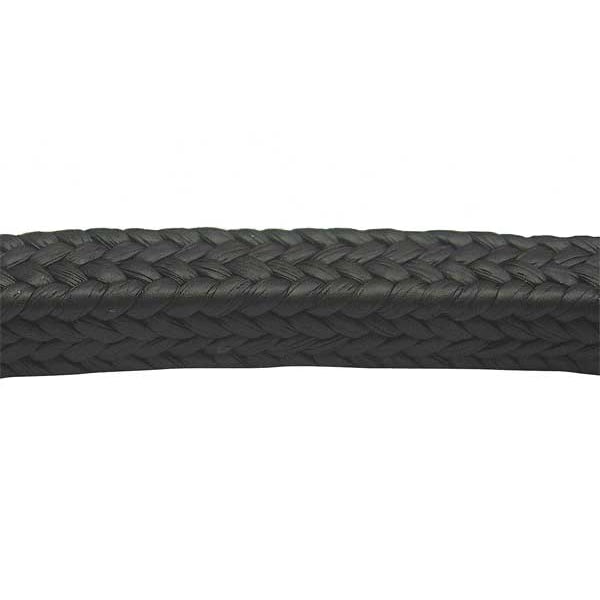

Packing Seal, 1/4 Sq In., 10 Ft
| Item - Packing Seals | Compression Packing Seal |
|---|---|
| Square (In.) | 1/4 |
| Length | 10 ft |
| Material | Expanded PTFE with Graphite |
| Lubrication - Packing Seals | Yes |
| Max. Pressure for Pumps (PSI) | 300 |
| Max. Pressure for Valves (PSI) | NR |
| Industry - Packing Seals | Chemical, General Service, Waste/Water Treatment |
| For Use In - Packing Seals | Pumps |
| pH Range | 0 to 14 |
| Max. Shaft Speed (ft/min) | 3,800 fpm |
| Features | PTFE Graphite with Lubrication Reduces Shaft Damage. Lower Cost GFO(R) Alternative |
| Color | Black |
| Standards | OSHA |
| For Use In | Pumps and Valves |
| Item | Compression Packing Seal |
| Application | Excellent General Service and Light Slurry Packing |
| Ambient Temp. Range (F) | -400 to 550 |
| Max. Temp in Steam (F) | NR |
| Pressure for Valves - Maximum | 1,500 psi |
| Packing Seal Size | 0.25 sq in |
| Temperature in Steam - Maximum | Not Rated |
| Overall Length | 10 ft |
| Pressure for Pumps - Maximum | 500 psi |
| Shaft Speed - Maximum | 800 RPM |
| Product Type | Compression Packing Seal |
| pH - Minimum | 0 pH |
| Seal Material | PTFE, Graphite |
| pH - Maximum | 14 pH |
| Ambient Temperature - Maximum | 550 deg F |
| Includes | Lubrication |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
