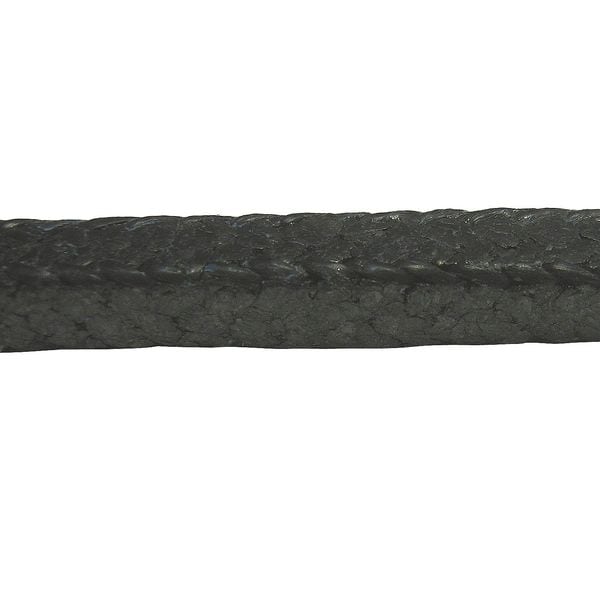

Packing Seal, 1/4 Sq In., 10 Ft
| Item - Packing Seals | Compression Packing Seal |
|---|---|
| Square (In.) | 1/4 |
| Length | 10 ft |
| Material | Flexible Graphite Packing with Carbon Corners |
| Lubrication - Packing Seals | Yes |
| Max. Pressure for Pumps (PSI) | 500 |
| Max. Pressure for Valves (PSI) | 3,000 |
| Industry - Packing Seals | Power Generation |
| For Use In - Packing Seals | Pumps, Valves |
| Item | Compression Packing Seal |
| Max. Shaft Speed (ft/min) | 4,000 fpm |
| Standards | OSHA, RoHS |
| Features | High Temperature Packing That Can Be Used In Pumps and Steam Valves. Can Run At Low Or No Leak |
| Max. Temp in Steam (F) | 1,200 |
| pH Range | 0 to 14 |
| Application | Good Choice for Boiler Feed and Condensate Pumps. Excellent Packing for Steam Valves |
| Color | Gray |
| Ambient Temp. Range (F) | -400 to 650 |
| For Use In | Pumps and Valves |
| Temperature in Steam - Maximum | 1,200 deg F |
| Packing Seal Size | 0.25 sq in |
| pH - Maximum | 14 pH |
| Product Type | Compression Packing Seal |
| Includes | Lubrication |
| External Coating | Petrolatum |
| Pressure for Valves - Maximum | 3,000 psi |
| Overall Length | 10 ft |
| Shaft Speed - Maximum | 4,000 fpm |
| Ambient Temperature - Minimum | -300 deg F |
| Pressure for Pumps - Maximum | 500 psi |
| Seal Material | Graphite, Carbon |
| pH - Minimum | 2 pH |
| Ambient Temperature - Maximum | 1,200 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
