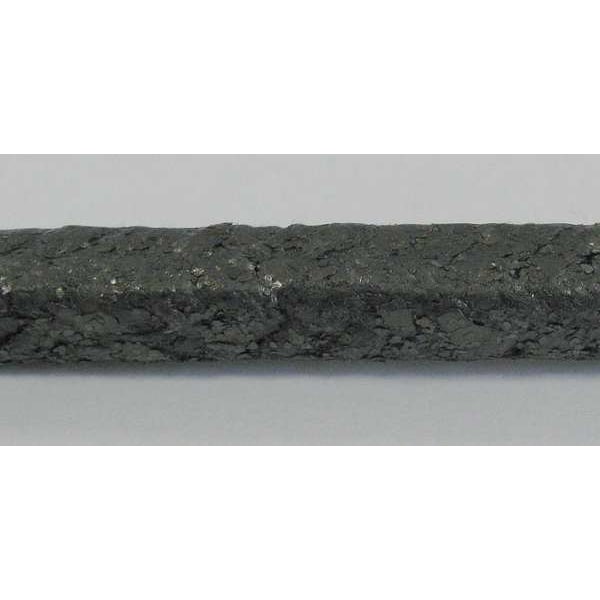

Packing Seal, 5/8 Sq In., 25 Ft
| Item - Packing Seals | Compression Packing Seal |
|---|---|
| Square (In.) | 5/8 |
| Length | 25 ft |
| Material | Acrylic/Graphite |
| Lubrication - Packing Seals | Yes |
| Max. Pressure for Pumps (PSI) | 300 |
| Max. Pressure for Valves (PSI) | NR |
| Industry - Packing Seals | General Service, Waste/Water Treatment |
| For Use In - Packing Seals | Pumps |
| Item | Compression Packing Seal |
| Max. Temp in Steam (F) | NR |
| Max. Shaft Speed (ft/min) | 2,400 fpm |
| pH Range | 3 to 11 |
| Color | Black |
| For Use In | Pumps |
| Application | Pumps, Mixers, Agiators, Reactors, And Valves Handling Mild Acids, Mild Caustics, Steam, Oils, Brine, Slurries And Water |
| Features | Syn-Tex Yarn Heavily Impregnated With Graphite |
| External Coating - Packing Seals | Petrolatum |
| Ambient Temp. Range (F) | -10 to 450 |
| pH - Maximum | 11 pH |
| Pressure for Valves - Maximum | Not Rated |
| Overall Length | 25 ft |
| Shaft Speed - Maximum | 2,400 fpm |
| Ambient Temperature - Minimum | -10 deg F |
| Packing Seal Size | 0.625 sq in |
| Ambient Temperature - Maximum | 450 deg F |
| Temperature in Steam - Maximum | NR |
| Seal Material | Graphite, Acrylic |
| pH - Minimum | 3 pH |
| External Coating | Petrolatum |
| Pressure for Pumps - Maximum | 300 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
