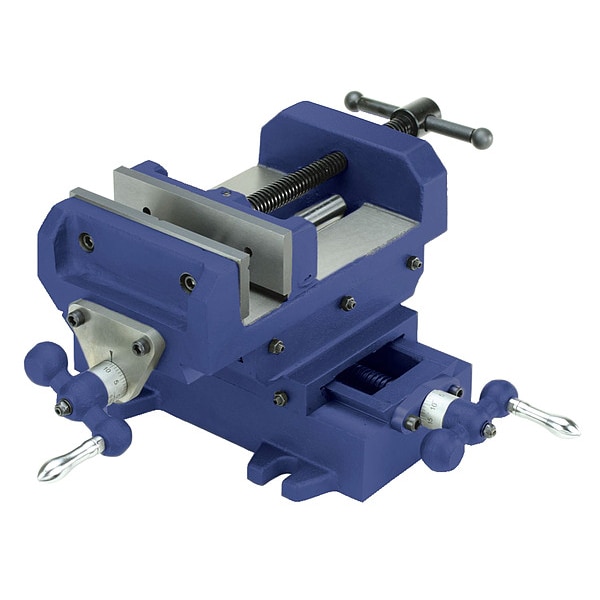

Cross Slide Vise, Overall 17-1/2" L
| Item | Machine Vise |
|---|---|
| Type | General Purpose |
| Features | Can also be used as a Conventional Drill Press Vise |
| Jaw Opening (In.) | 8 |
| Jaw Width (In.) | 8 |
| Overall Height (In.) | 7-1/4 |
| Overall Length (In.) | 17-1/2 |
| Jaw Plate | Grooved |
| Max. Travel | 8 in in Both X and Y Directions |
| Throat Depth (In.) | 2 |
| Jaw Deflection | 0.002 in At 2000 lb |
| Base | Stationary |
| Clamping Force (Lb.) | 2,000 |
| Bed/Base | 0.001 in |
| Base Type | Fixed |
| Jaw Width | 8 in |
| Jaw Deflection - Maximum | 0.002 in |
| Base Swivel - Maximum | Not Applicable |
| Compatible Machinery | Drill Press, Milling Machine |
| Lead Screw Type | V-Thread |
| Overall Length | 17-1/2 in |
| Jaw Opening - Maximum | 8 in |
| Bed/Base Parallel Tolerance - Maximum | 0.001 in |
| Travel - Y-Axis - Maximum | 8 in |
| Travel - X-Axis - Maximum | 8 in |
| Overall Height | 7-1/4 in |
| Adjustment Graduation | 0.001 in |
| Mounting Slot Length | 3/4 in |
| Clamping Force - Maximum | 2,000 lbf |
| Mounting Slot/Keyway Width | 1/2 in |
| Throat Depth | 2 in |
| Machine Vise Type | Cross-Slide |
| Package Quantity | 1 |
