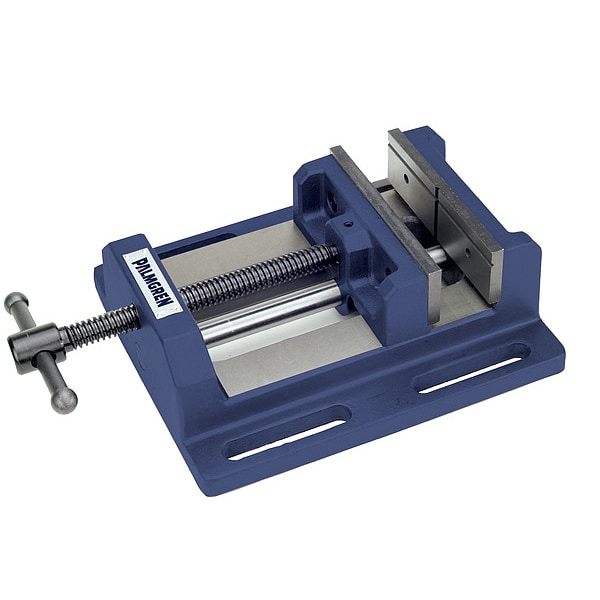

Drill Press Vise, Low Profile, 6in Jaw W.
| Item | Machine Vise |
|---|---|
| Type | Low Profile |
| Features | Four Slots for Secure Mounting to Machine Table |
| Jaw Opening (In.) | 6 |
| Jaw Width (In.) | 6 |
| Overall Height (In.) | 4-3/4 |
| Overall Length (In.) | 10-7/8 |
| Throat Depth (In.) | 2 |
| Jaw Plate | Grooved |
| Base | Stationary |
| Bed/Base | Center Rod |
| Clamping Force (Lb.) | 30,000 |
| Jaw Deflection | 0.002 in @ 2000 lbs |
| Base Type | Fixed |
| Jaw Width | 6 in |
| Overall Width | 10 in |
| Compatible Machinery | Drill Press |
| Bed/Base Parallel Tolerance - Maximum | 0.001 in |
| Jaw Deflection - Maximum | 0.002 in |
| Jaw Opening - Maximum | 6 in |
| Mounting Slot/Keyway Width | 1/2 in |
| Jaw Face Type | Smooth, V-Grooved |
| Lead Screw Type | V-Thread |
| Mounting Slot Length | 8 in |
| Clamping Force - Maximum | 3,000 lbf |
| Throat Depth | 2 in |
| Travel - X-Axis - Maximum | Not Applicable |
| Overall Length | 16 in |
| Adjustment Graduation | Not Applicable |
| Overall Height | 4 in |
| Travel - Y-Axis - Maximum | Not Applicable |
| Base Swivel - Maximum | Not Applicable |
| Machine Vise Type | Standard |
| Package Quantity | 1 |
