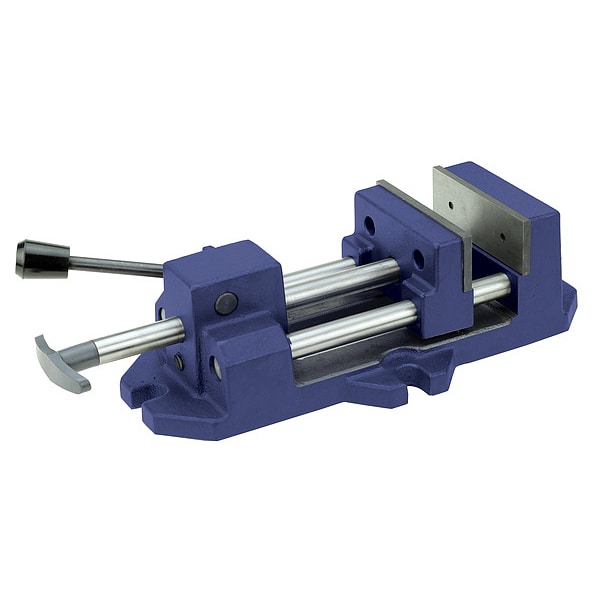

Drill Press Vise, Overall 14-13/64" L
| Item | Machine Vise |
|---|---|
| Type | General Purpose |
| Features | Cam Action Design for Repetitive Work, Locking Lever, Locking Lever can be Raised or Lowered to Tighten or Loosen Against the Work Piece |
| Jaw Opening (In.) | 4 |
| Jaw Width (In.) | 4 |
| Overall Height (In.) | 3-9/16 |
| Overall Length (In.) | 14-13/64 |
| Bed/Base | 0.001 in |
| Jaw Plate | Smooth |
| Throat Depth (In.) | 1-3/8 |
| Base | Stationary |
| Jaw Deflection | 0.002 in |
| Jaw Width | 4 in |
| Base Type | Fixed |
| Jaw Face Type | Smooth |
| Travel - Y-Axis - Maximum | Not Applicable |
| Machine Vise Type | Cam Action Quick Release |
| Lead Screw Type | Not Applicable |
| Compatible Machinery | Drill Press |
| Overall Height | 3-9/16 in |
| Mounting Slot/Keyway Width | 1/2 in |
| Throat Depth | 1-3/8 in |
| Bed/Base Parallel Tolerance - Maximum | 0.001 in |
| Base Swivel - Maximum | Not Applicable |
| Overall Length | 14.2031 in |
| Travel - X-Axis - Maximum | Not Applicable |
| Mounting Slot Length | 3/4 in |
| Jaw Opening - Maximum | 4 in |
| Clamping Force - Maximum | 600 lbf |
| Adjustment Graduation | Not Applicable |
| Jaw Deflection - Maximum | 0.002 in |
| Package Quantity | 1 |
