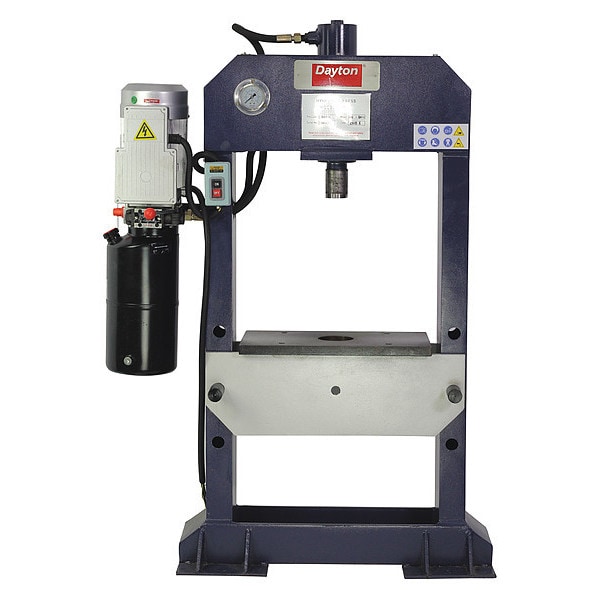

Hydraulic Press, Electric, Overall 80" H
| Frame Capacity | 10 ton |
|---|---|
| Frame Type | H-Frame |
| Cylinder Stroke | 6-1/4 in |
| Pump Type | Hydraulic Electric |
| Base Length | 30 in |
| Base Width | 24 in |
| Overall Height | 80 in |
| Working Width | 19-1/4 in |
| Working Height | 35" |
| Cylinder Type | Single Acting |
| Features | Bolted Channel Frame;Economical |
| Application | Bending, Clamping, Forming, Pressing Bearings, Punching, Staking, Straightening |
| Total Height | 80 in |
| Bed Height | 40" |
| Cylinder | Fixed |
| Includes | Table Plates, V-Blocks |
| Hose Length | 5 ft 6 in |
| Pump | Hydraulic |
| Reservoir Capacity | 2 gal |
| Item | Hydraulic Press |
| Total Width | 40 in |
| Height with Screw Extension | 80" |
| Voltage | 230 V |
| Phase | Single |
| Overall Width | 40 in |
| Stroke | 6-1/4 in |
| Pressure | 10 tons |
| Distance Between Uprights | 19-1/4 in |
| Material - Machining | Iron |
| Operating Pressure | 10 Tonf |
| Ram-to-Table Distance - Maximum | 18-1/8 in |
| Frame Material | Iron |
| Capacity | 10 ton |
| Pump Model Number | Hydraulic |
| Horsepower | 3 |
| Base Depth | 30 in |
| Ram-to-Table Distance - Minimum | 7-5/8 in |
| Operation | Electric |
| Hydraulic Hose Length | 66 in |
| Press Bed Width | 19-1/4 in |
| Press Bed Depth | 6-5/8 in |
| Package Quantity | 1 |
