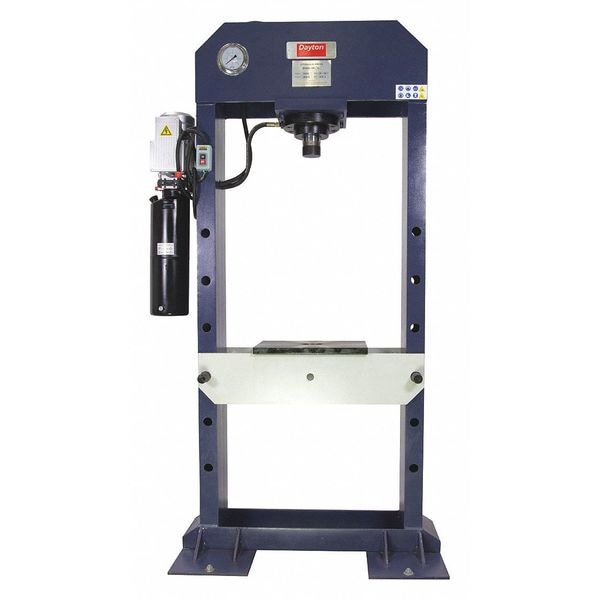

Hydraulic Press, Electric, Overall 88" H
| Frame Capacity | 50 ton |
|---|---|
| Frame Type | H-Frame |
| Cylinder Stroke | 8-3/4 in |
| Pump Type | Hydraulic Electric |
| Base Length | 42 in |
| Base Width | 23 in |
| Overall Height | 88 in |
| Cylinder | Fixed |
| Height with Screw Extension | 88" |
| Item | Hydraulic Press |
| Working Height | 26" |
| Reservoir Capacity | 3 gal |
| Bed Height | 43" |
| Includes | Table Plates, V-Blocks |
| Total Width | 54 in |
| Features | Heavy Duty;Welded Channel Frame |
| Pump | Hydraulic |
| Hose Length | 5 ft 6 in |
| Application | Bending, Clamping, Forming, Pressing Bearings, Punching, Staking, Straightening |
| Cylinder Type | Single Acting |
| Total Height | 88 in |
| Working Width | 13-1/2 in |
| Material - Machining | Iron |
| Distance Between Uprights | 13-1/2 in |
| Overall Width | 54 in |
| Stroke | 8-3/4 in |
| Pressure | 50 tons |
| Phase | Single |
| Voltage | 230 V |
| Operating Pressure | 50 Tonf |
| Hydraulic Hose Length | 66 in |
| Base Depth | 42 in |
| Horsepower | 3 |
| Capacity | 50 ton |
| Pump Model Number | Hydraulic |
| Ram-to-Table Distance - Maximum | 47-5/8 in |
| Press Bed Width | 13-1/2 in |
| Frame Material | Iron |
| Operation | Electric |
| Ram-to-Table Distance - Minimum | 8-3/8 in |
| Press Bed Depth | 10-1/8 in |
| Package Quantity | 1 |
