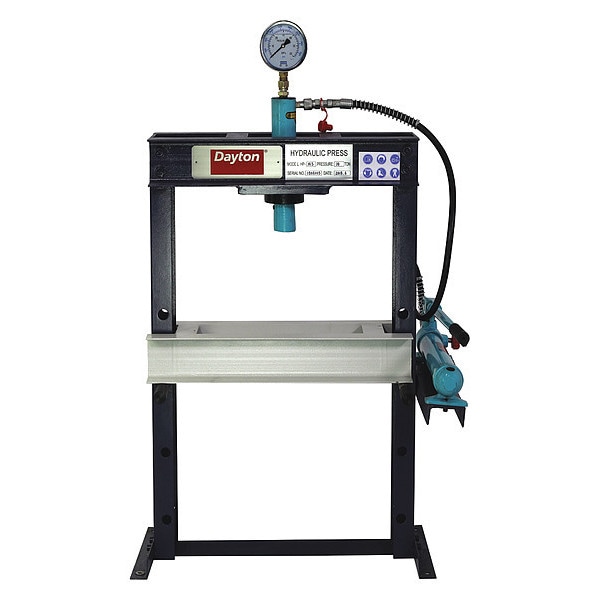

Hydraulic Press, Manual, Overall 60" H
| Frame Capacity | 10 ton |
|---|---|
| Frame Type | H-Frame |
| Cylinder Stroke | 26 in |
| Pump Type | Manual |
| Base Length | 24 in |
| Base Width | 20 in |
| Overall Height | 60 in |
| Total Width | 30 in |
| Reservoir Capacity | 24 fl oz |
| Strokes to Extend Piston 1 In | 26 |
| Pump Handle Effort @ Rated Capacity (Lb.) | 25 |
| Cylinder Type | Single Acting |
| Bed Height | 30" |
| Total Height | 60 in |
| Working Height | 28" |
| Hose Length | 5 ft 6 in |
| Pump | Hydraulic |
| Height with Screw Extension | 60" |
| Includes | Table Plates, V-Blocks |
| Working Width | 19-1/4 in |
| Application | Bending, Clamping, Forming, Pressing Bearings, Punching, Staking, Straightening |
| Item | Hydraulic Press |
| Features | Bolted Channel Frame;Economical |
| Cylinder | Fixed |
| Distance Between Uprights | 19-1/4 in |
| Material - Machining | Iron |
| Overall Width | 30 in |
| Pressure | 10 tons |
| Stroke | 26 in |
| Operating Pressure | 10 Tonf |
| Voltage | Not Applicable |
| Phase | Not Applicable |
| Operation | Manual |
| Horsepower | Not Applicable |
| Motor Speed - Maximum | Not Applicable |
| Capacity | 10 ton |
| Current | Not Applicable |
| Base Depth | 24 in |
| Hydraulic Hose Length | 66 in |
| Frame Material | Iron |
| Press Bed Width | 19-1/4 in |
| Pump Model Number | Hydraulic |
| Package Quantity | 1 |
