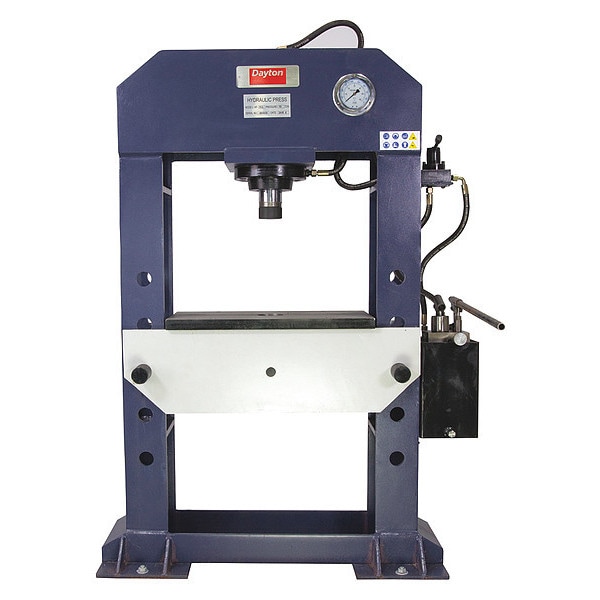

Hydraulic Press, Manual, Overall 87" H
| Frame Capacity | 75 ton |
|---|---|
| Frame Type | H-Frame |
| Cylinder Stroke | 26 in |
| Pump Type | Manual |
| Base Length | 55 in |
| Base Width | 30 in |
| Overall Height | 87 in |
| Cylinder Type | Single Acting |
| Hose Length | 5 ft 6 in |
| Reservoir Capacity | 6 qt |
| Bed Height | 43" |
| Strokes to Extend Piston 1 In | 26 |
| Total Width | 60 in |
| Total Height | 87 in |
| Working Width | 13-1/2 in |
| Height with Screw Extension | 87" |
| Pump Handle Effort @ Rated Capacity (Lb.) | 50 |
| Features | Heavy Duty;Welded Channel Frame |
| Item | Hydraulic Press |
| Includes | Table Plates, V-Blocks |
| Working Height | 26" |
| Application | Bending, Clamping, Forming, Pressing Bearings, Punching, Staking, Straightening |
| Cylinder | Fixed |
| Pump | Hydraulic |
| Stroke | 26 in |
| Distance Between Uprights | 13-1/2 in |
| Material - Machining | Iron |
| Overall Width | 60 in |
| Pressure | 75 tons |
| Voltage | Not Applicable |
| Phase | Not Applicable |
| Operating Pressure | 75 Tonf |
| Ram-to-Table Distance - Minimum | 1-1/2 in |
| Horsepower | Not Applicable |
| Operation | Manual |
| Hydraulic Hose Length | 66 in |
| Base Depth | 55 in |
| Ram-to-Table Distance - Maximum | 24-1/4 in |
| Press Bed Depth | 10-1/8 in |
| Capacity | 75 ton |
| Current | Not Applicable |
| Pump Model Number | Hydraulic |
| Motor Speed - Maximum | Not Applicable |
| Press Bed Width | 13-1/2 in |
| Frame Material | Iron |
| Package Quantity | 1 |
