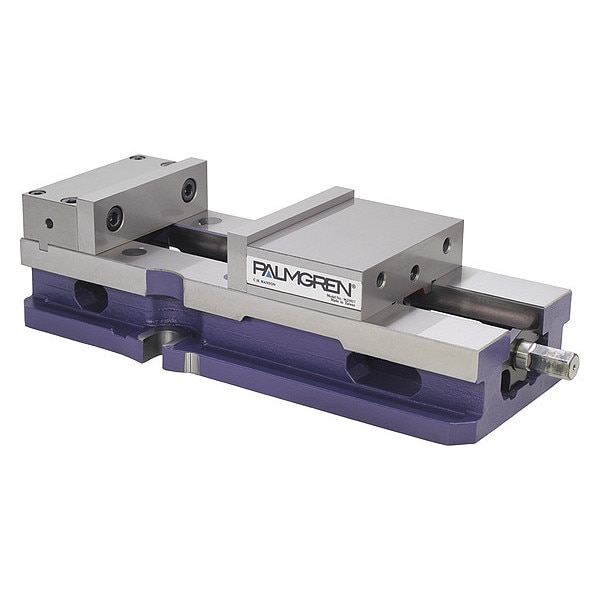

Machine Vise, 18-1/4" L, 4-19/32" H
| Item | Machine Vise |
|---|---|
| Type | Dual Force |
| Features | Palmgren's Anti-Lift Mechanism, Hardened Jaw Plates, Hardened Vise Bed, Repeatability within 0.001 in, Stress Relieved Ductile Iron Castings 80,000 psi, Vise Nut does not Extend beyond the end of the Vise Body |
| Jaw Opening (In.) | 9 |
| Jaw Width (In.) | 6 |
| Overall Height (In.) | 4-19/32 |
| Overall Length (In.) | 18-1/4 |
| Jaw Deflection | 0.001 in At 4000 lb |
| Clamping Force (Lb.) | 80,000 |
| Max. Travel | 9.00 |
| Bed/Base | 0.0004 in |
| Jaw Plate | Hardened Ground Steel |
| Base | Stationary |
| Throat Depth (In.) | 1-47/64 |
| Base Type | Fixed |
| Jaw Width | 6 in |
| Compatible Machinery | CNC Milling Machine |
| Travel - Y-Axis - Maximum | Not Applicable |
| Jaw Opening - Maximum | 9 in |
| Mounting Slot Length | 1 in |
| Machine Vise Type | Precision |
| Mounting Slot/Keyway Width | 5/8 in |
| Base Material | Steel |
| Jaw Face Type | Smooth |
| Adjustment Graduation | Not Applicable |
| Jaw Deflection - Maximum | 0.001 in |
| Overall Length | 18-1/4 in |
| Lead Screw Type | ACME |
| Overall Height | 4.5938 in |
| Base Swivel - Maximum | Not Applicable |
| Bed/Base Parallel Tolerance - Maximum | 0 in |
| Travel - X-Axis - Maximum | Not Applicable |
| Throat Depth | 1-47/64 in |
| Jaw Material | Steel |
| Package Quantity | 1 |
