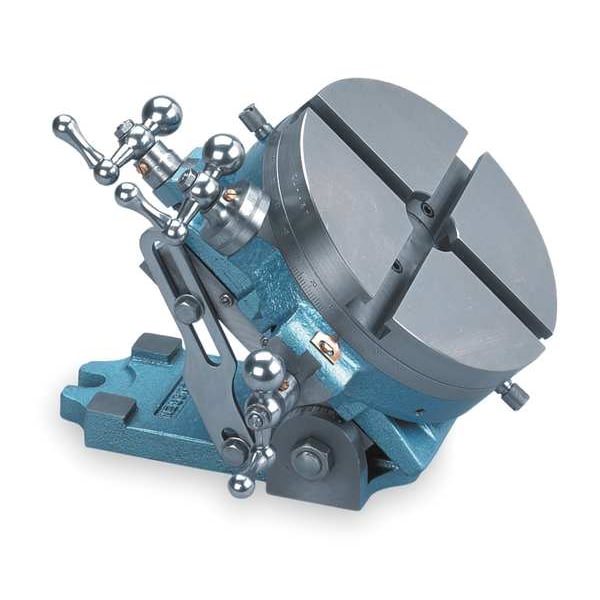

Rotary Slide Tilting Table, 10 In, X-Y 4
| Item | Rotary Table |
|---|---|
| Features | 360 Degrees Table Rotation, Lateral and Transverse Cross Feed and Graduated Angle Settings, Rotary Indexing |
| Includes | 1 5/8 in Diameter Center Bore, 5/8 in x 1 in T-Slots, Rim Calibrated 1 Degrees Increments |
| Material | Cast iron |
| Capacity | 10" Diameter |
| Longitudinal Travel (In.) | 4.00 |
| Application | For Accurate Set Up For Boring, Drilling, Reaming, Tapping, Grinding And Milling Operations |
| For Use With | Drill Presses, Milling Machines, Grinders, Special Machines |
| Cross Travel (In.) | 4 |
| Travel Movement/Revolution | 360 deg |
| T-Slots | 5/8 |
| Height (In.) | 5-3/4 |
| Overall Height | 7 in |
| Table Dia. | 10 in |
| Table Material | Cast Iron |
| Cross-Slide | Yes |
| Base Length | 9-3/16 in |
| Load Capacity | 10 in Diameter |
| Cross Travel | 4 in |
| Base Width | 4-15/16 in |
| Vernier Reading | 1 min, 3 min |
| Table Diameter | 10 in |
| Gear Ratio | 40:1 |
| Travel Movement | 360 Degrees |
| Compatible Product Type | Drill Presses, Milling Machines, Grinders |
| T-Slot Width | 5/8 in |
| Package Quantity | 1 |
