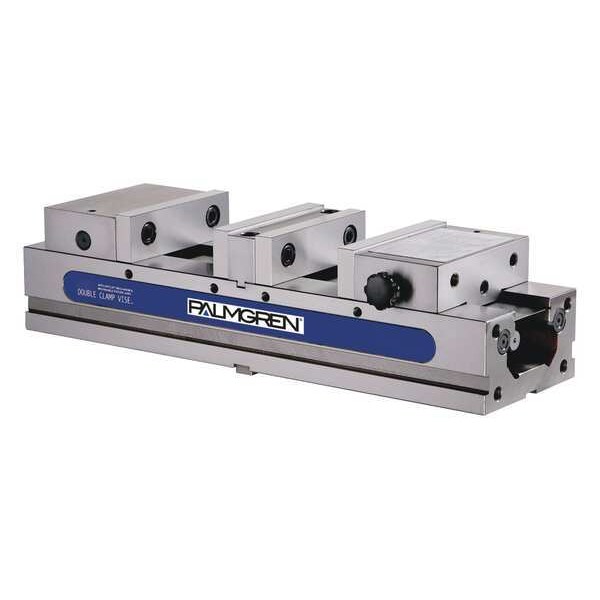

Vise, Dual Force, 4-1/64 in. W, 7960 lb.
| Item | Machine Vise |
|---|---|
| Type | Dual Force |
| Features | 80,000 psi Ductile Ron Castings, can be Mounted Horizontally or Vertically, Can Clamp Two of the Same Size Parts of Different Size Parts, Clamping Force Equalization, Different Work Piece Clamping Applications, Dual Force Anti-Lift Mechanism at Both Ends of the Vise, Height Tolerance is within 0.001, Lifetime Guarantee, One Handle Operates the Two Moveable Jaws, Precision Ground on all Sides |
| Jaw Opening (In.) | 3-1/2 |
| Jaw Width (In.) | 4-1/64 |
| Overall Height (In.) | 3-13/16 |
| Overall Length (In.) | 18-5/64 |
| Max. Travel | 3-1/2 |
| Base | Slotted |
| Clamping Force (Lb.) | 7,960 |
| Bed/Base | Ground |
| Throat Depth (In.) | 1-31/64 |
| Jaw Deflection | 0.002 in |
| Jaw Plate | Smooth |
| Jaw Width | 4-1/64 in |
| Overall Length | 18.0781 in |
| Jaw Deflection - Maximum | 0.002 in |
| Clamping Force - Maximum | 7,960 lbf |
| Jaw Opening - Maximum | 3-1/2 in |
| Throat Depth | 1-31/64 in |
| Overall Height | 3-13/16 in |
| Package Quantity | 1 |
