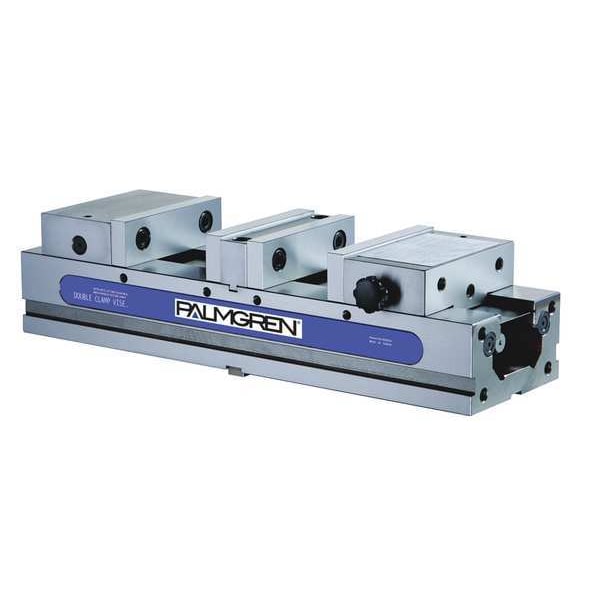

Vise, Dual Force, Slotted, 5-63/64 in. W
| Item | Machine Vise |
|---|---|
| Type | Dual Force |
| Features | 80,000 psi Ductile Ron Castings, can be Mounted Horizontally or Vertically, Can Clamp Two of the Same Size Parts of Different Size Parts, Clamping Force Equalization, Different Work Piece Clamping Applications, Dual Force Anti-Lift Mechanism at Both Ends of the Vise, Height Tolerance is within 0.001, Lifetime Guarantee, One Handle Operates the Two Moveable Jaws, Precision Ground on all Sides |
| Jaw Opening (In.) | 12-7/16 |
| Jaw Width (In.) | 5-63/64 |
| Overall Height (In.) | 5 |
| Overall Length (In.) | 21-7/64 |
| Base | Slotted |
| Jaw Plate | Smooth |
| Max. Travel | 12-7/16 |
| Bed/Base | Ground |
| Throat Depth (In.) | 1-3/4 |
| Jaw Deflection | 0.002 in |
| Clamping Force (Lb.) | 7,960 |
| Jaw Width | 6 in |
| Jaw Deflection - Maximum | 0.002 in |
| Jaw Material | Steel |
| Overall Height | 8 in |
| Clamping Force - Maximum | 7,960 lbf |
| Overall Length | 21 in |
| Jaw Opening - Maximum | 12-7/16 in |
| Bed/Base Parallel Tolerance - Maximum | 0.0008 in |
| Throat Depth | 1-3/4 in |
| Overall Width | 9-1/2 in |
| Base Material | Steel |
| Package Quantity | 1 |
