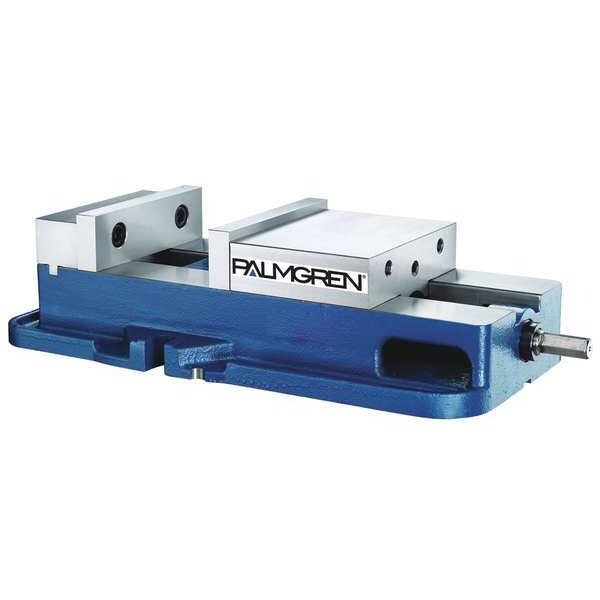

Vise, Dual Force, Slotted, 8-7/64 in. W
| Item | Machine Vise |
|---|---|
| Type | Dual Force |
| Features | 80,000 psi Stress Relieved Ductile Iron Castings, Palmgren's Anti-Lift Mechanism, Hardened Jaw Plates, Hardened Vise Bed, Repeatability within 0.001 in, Vise Nut does not Extend beyond the end of the Vise Body |
| Jaw Opening (In.) | 10-7/16 |
| Jaw Width (In.) | 8-7/64 |
| Overall Height (In.) | 5-1/2 |
| Overall Length (In.) | 23-1/32 |
| Clamping Force (Lb.) | 7,960 |
| Jaw Plate | Smooth |
| Throat Depth (In.) | 2-13/64 |
| Base | Slotted |
| Jaw Deflection | 0.003 in |
| Max. Travel | 10-7/16 |
| Bed/Base | Ground |
| Base Type | Fixed |
| Jaw Width | 8 in |
| Jaw Face Type | Smooth |
| Mounting Slot Length | 1 in |
| Throat Depth | 2-13/64 in |
| Jaw Material | Steel |
| Mounting Slot/Keyway Width | 5/8 in |
| Overall Height | 8 in |
| Clamping Force - Maximum | 7,960 lbf |
| Base Material | Steel |
| Lead Screw Type | ACME |
| Travel - Y-Axis - Maximum | Not Applicable |
| Overall Length | 26 in |
| Overall Width | 12.6 in |
| Bed/Base Parallel Tolerance - Maximum | 0 in |
| Travel - X-Axis - Maximum | Not Applicable |
| Machine Vise Type | Precision |
| Adjustment Graduation | Not Applicable |
| Jaw Deflection - Maximum | 0.001 in |
| Jaw Opening - Maximum | 10 in |
| Base Swivel - Maximum | Not Applicable |
| Compatible Machinery | CNC Milling Machine |
| Package Quantity | 1 |
