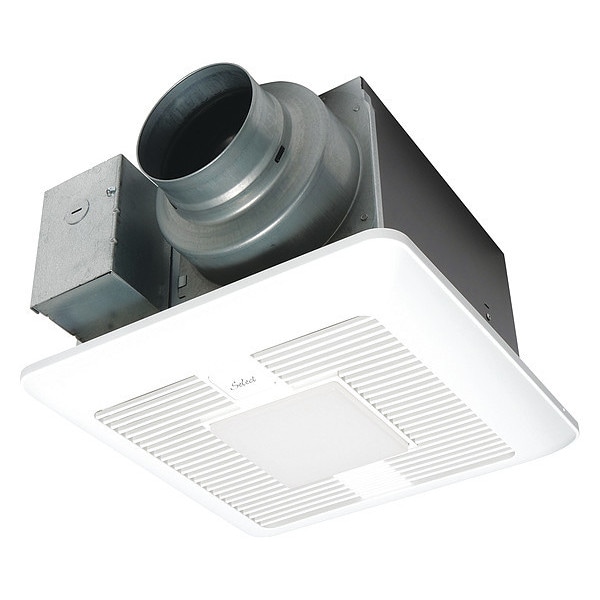

Bathroom Fan, 50/80/110 cfm cfm, 4 in or 6 in Duct Dia., 120V AC, With Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| CFM @ 0.100-In. SP | 50/80/110 cfm |
| Includes | Motion Sensor Cap |
| Phase | 1 |
| Watts | 3.2/5.3/10.5 W |
| Duct Dia. | 4 in, 6 in |
| Amps | 0.04/0.06/0.11 |
| Housing Material | Zinc; Aluminum; Magnesium |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3/0.3/0.4 |
| Lighted | With Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Housing Height | 7-3/8 in |
| Nominal RPM | 730/811/958 RPM |
| Grille Width | 13 in |
| Discharge | Vertical |
| Grille Length | 13 in |
| Item | Bathroom Fan |
| Housing Length | 10-1/4 in |
| Housing Width | 10-1/4 in |
| Grille Material | Polypropylene |
| Green Certification or Other Recognition | ENERGY STAR Certified |
| Humidity Sensing | No |
| Standards | ASHRAE 62.2, CA T-24, CALGreen, LEED, UL Listed |
| Night-Light | Yes |
| Requires | Ductwork |
| Hz | 60 |
| Motor Type | DC Motor |
| Profile Height Family | Medium |
| Primary Light Wattage | 10 W |
| Overall Width | 10-1/4 in |
| Blower Wheel Curve | Forward |
| Light Color Temperature | Warm White |
| Full Load Current | 0.04 A, 0.06 A, 0.11 A |
| Duct Shape | Round |
| Number of Primary Lights | 1 |
| Night Light Technology | LED |
| Profile Width Family | Single-Wide |
| Exhaust Airflow @ 0.100 in SP | 110 cfm |
| Overall Depth | 10-1/4 in |
| For Cut-Out Width | 10-1/2 in |
| Includes Grill | Yes |
| Maximum Noise Level | 0.9 sones |
| Noise Level @ 0.100 in SP @ 5 ft | 0.4 sones |
| Exhaust Airflow @ 0.250 in SP | 50 cfm, 80 cfm, 110 cfm |
| Frequency | 60 Hz |
| Motor Speed | 730 RPM, 811 RPM, 958 RPM, 1,066 RPM, 1,127 RPM, 1,203 RPM, 1,281 RPM, 1,341 RPM, 1,375 RPM |
| Noise Level @ 0.250 in SP @ 5 ft | 0.9 sones |
| Mounting Orientation | Horizontal |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Vent Design | Ducted |
| Night Light Wattage | 0.2 W |
| Discharge Direction | Vertical |
| Includes Light Bulbs | Yes |
| Primary Lighting Technology | LED |
| Sensor Type | Occupancy |
| For Cut-Out Length | 10-1/2 in |
| Duct Diameter | 4 in |
| Nameplate Voltage | 120 V AC |
| Overall Height | 7-3/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
