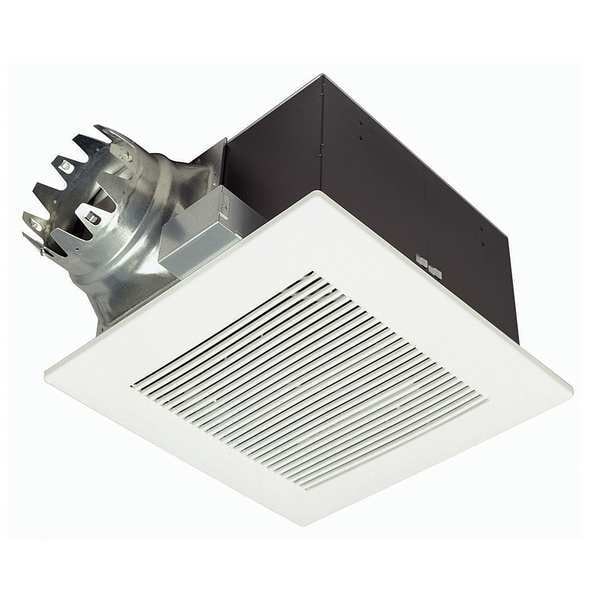

Ceiling Bathroom Fan, 190 cfm cfm, 6 in Duct Dia., 120V AC, Without Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 190 cfm |
| Phase | 1 |
| Watts | 43.7 |
| Duct Dia. | 6 in |
| Amps | 0.34 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.8 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Hz | 60 |
| Housing Width | 12-9/32 in |
| Standards | ASHRAE 62.2, California Title 24, ENERGY STAR, LEED, UL Listed, Washington VIAQ |
| Green Certification or Other Recognition | ENERGY STAR |
| Grille Length | 15 in |
| Housing Height | 9-9/32 in |
| Grille Width | 15 in |
| Humidity Sensing | No |
| Nominal RPM | 761 RPM |
| Housing Length | 12-9/32 in |
| Grille Material | Polypropylene |
| Construction Material | Metal |
| Discharge | Horizontal |
| Night-Light | No |
| Item | Bathroom Fan |
| Motor Enclosure | Enclosed |
| Motor Type | Condenser Motor |
| Maximum Noise Level | 1.4 sones |
| Overall Depth | 12-1/4 in |
| Duct Diameter | 6 in |
| For Cut-Out Width | 12-1/4 in |
| Includes Light Bulbs | No |
| Overall Height | 9-1/4 in |
| Blower Wheel Curve | Forward |
| Discharge Direction | Horizontal |
| Profile Height Family | Medium |
| Full Load Current | 0.34 A |
| Exhaust Airflow @ 0.250 in SP | 145 cfm |
| Mounting Orientation | Horizontal |
| Noise Level @ 0.100 in SP @ 5 ft | 0.8 sones |
| Wattage | 44 W |
| Duct Shape | Round |
| Noise Level @ 0.250 in SP @ 5 ft | 1.4 sones |
| Includes Grill | Yes |
| Frequency | 60 Hz |
| For Cut-Out Length | 12-1/4 in |
| Vent Design | Ducted |
| Nameplate Voltage | 120 V AC |
| Exhaust Airflow @ 0.100 in SP | 190 cfm |
| Housing Finish | Painted Enamel |
| Profile Width Family | Single-Wide |
| Sensor Type | None |
| Motor Speed | 696 RPM, 871 RPM |
| Overall Width | 12-1/4 in |
| Width | 43.7 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
