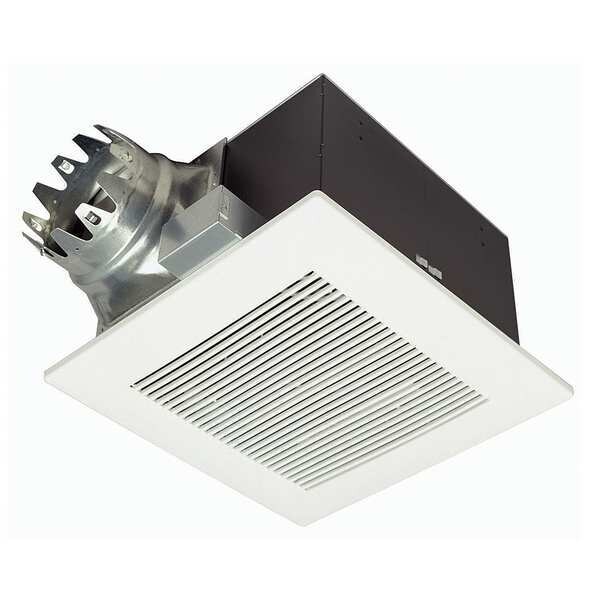

Ceiling Bathroom Fan, 380 cfm cfm, 6 in Duct Dia., 120V AC, Without Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 380 cfm |
| Phase | 1 |
| Watts | 111.5 |
| Duct Dia. | 6 in |
| Amps | 1 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 3 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Housing Length | 14-51/64 in |
| Housing Height | 14-51/64 in |
| Height (In.) | 9-9/32 |
| Housing Width | 9-27/32 in |
| Green Certification or Other Recognition | ENERGY STAR |
| Humidity Sensing | No |
| Hz | 60 |
| Standards | ASHRAE 62.2, California Title 24, ENERGY STAR, LEED, UL Listed, Washington VIAQ |
| Grille Width | 17-1/2 in |
| Night-Light | No |
| Item | Bathroom Fan |
| Construction Material | Metal |
| Width (In.) | 12-9/32 |
| Grille Length | 17-1/2 in |
| Nominal RPM | 774 RPM |
| Grille Material | Polypropylene |
| Discharge | Horizontal |
| Motor Enclosure | Enclosed |
| Motor Type | Condenser Motor |
| Wattage | 111 W |
| For Cut-Out Width | 14-3/4 in |
| Exhaust Airflow @ 0.250 in SP | 356 cfm |
| Sensor Type | None |
| Overall Width | 14-3/4 in |
| Mounting Orientation | Horizontal |
| Duct Diameter | 6 in |
| Profile Width Family | Single-Wide |
| Noise Level @ 0.250 in SP @ 5 ft | 3 sones |
| Housing Finish | Painted Enamel |
| Overall Depth | 14-3/4 in |
| Maximum Noise Level | 3 sones |
| Includes Light Bulbs | No |
| Blower Wheel Curve | Forward |
| Overall Height | 9-1/4 in |
| Nameplate Voltage | 120 V AC |
| Discharge Direction | Horizontal |
| Exhaust Airflow @ 0.100 in SP | 390 cfm |
| Includes Grill | Yes |
| Motor Speed | 793 RPM, 874 RPM |
| Vent Design | Ducted |
| Noise Level @ 0.100 in SP @ 5 ft | 3 sones |
| For Cut-Out Length | 14-3/4 in |
| Frequency | 60 Hz |
| Duct Shape | Round |
| Profile Height Family | Medium |
| Full Load Current | 0.99 A |
| Width | 111.5 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
