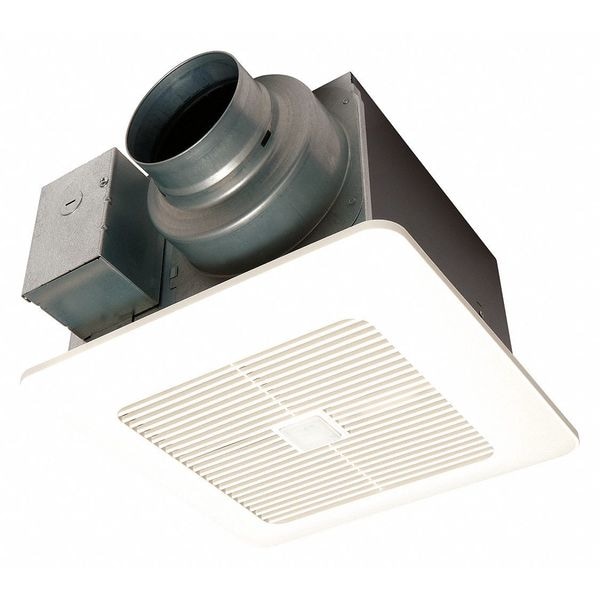

Ceiling Bathroom Fan, 50/80/110 cfm cfm, 4 in or 6 in Duct Dia., 120V AC, Without Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 50/80/110 cfm |
| Phase | 1 |
| Watts | 4.0/5.9/10.6 W |
| Duct Dia. | 4 in, 6 in |
| Amps | 0.07/0.11/0.18 |
| Housing Material | Zinc; Aluminum; Magnesium |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3/0.3/0.3 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | Yes |
| Profile | Medium |
| Grille Width | 13 in |
| Housing Height | 7-1/2 in |
| Housing Width | 10-1/4 in |
| Height (In.) | 7-1/2 |
| Grille Length | 13 in |
| Width (In.) | 10-1/4 |
| Housing Length | 10-1/4 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hz | 60 |
| Item | Bathroom Fan |
| Nominal RPM | 756/821/957 RPM |
| Green Certification or Other Recognition | ENERGY STAR |
| Discharge | Vertical |
| Requires | Ductwork |
| Humidity Sensing | Yes |
| Night-Light | No |
| Grille Material | Polypropylene |
| Standards | cUL Listed, ENERGY STAR, HVI Certified, UL Listed |
| Motor Type | DC Motor |
| Motor Enclosure | Enclosed |
| Full Load Current | 0.07 A, 0.11 A, 0.13 A, 0.18 A, 0.26 A |
| Profile Width Family | Single-Wide |
| Noise Level @ 0.100 in SP @ 5 ft | 0.3 sones |
| Blower Wheel Curve | Forward |
| For Cut-Out Width | 10-1/2 in |
| Vent Design | Ducted |
| Duct Diameter | 4 in |
| Overall Depth | 10-1/4 in |
| Nameplate Voltage | 120 V AC |
| Overall Height | 7-3/8 in |
| Profile Height Family | Medium |
| Includes Grill | Yes |
| Exhaust Airflow @ 0.100 in SP | 110 cfm |
| Exhaust Airflow @ 0.250 in SP | 53 cfm, 83 cfm, 111 cfm |
| For Cut-Out Length | 10-1/2 in |
| Mounting Orientation | Vertical |
| Duct Shape | Round |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Maximum Noise Level | 0.9 sones |
| Noise Level @ 0.250 in SP @ 5 ft | 0.9 sones |
| Includes Light Bulbs | No |
| Motor Speed | 756 RPM, 821 RPM, 957 RPM, 1,093 RPM, 1,172 RPM, 1,239 RPM |
| Frequency | 60 Hz |
| Sensor Type | Humidity, Occupancy |
| Discharge Direction | Vertical |
| Overall Width | 10-1/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
