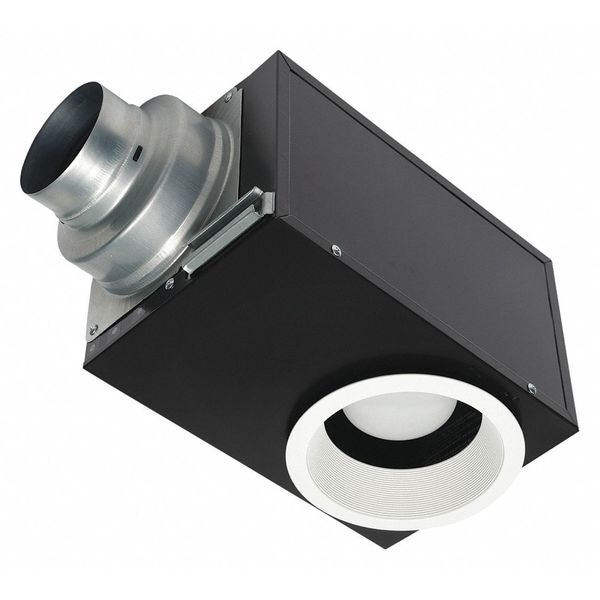

Ceiling Bathroom Fan, 80 cfm cfm, 4 in or 6 in Duct Dia., 120V AC, With Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 80 cfm |
| Includes | Hanger Bars, Mounting Brackets |
| Phase | 1 |
| Watts | 18.5 |
| Duct Dia. | 4 in, 6 in |
| Amps | 0.15 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 1 |
| Lighted | With Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Low |
| Housing Height | 7-1/2 in |
| Construction Material | Metal |
| Item | Bathroom Fan |
| Width (In.) | 8-1/4 |
| Grille Width | 6-1/2 in |
| Requires | Ductwork |
| Green Certification or Other Recognition | ENERGY STAR |
| Night-Light | No |
| Discharge | Horizontal |
| Hz | 60 |
| Housing Length | 12-3/4 in |
| Housing Width | 8-1/4 in |
| Grille Material | Polypropylene |
| Standards | cUL Listed, ENERGY STAR, HVI Certified, UL Listed |
| Humidity Sensing | No |
| Height (In.) | 7-1/2 |
| Grille Length | 6-1/2 in |
| Nominal RPM | 1342 RPM |
| Motor Enclosure | Enclosed |
| Motor Type | AC Motor |
| Housing Finish | Epoxy and Polyester Resin Coated |
| Number of Primary Lights | 1 |
| Exhaust Airflow @ 0.250 in SP | 66 cfm |
| Discharge Direction | Horizontal |
| Mounting Orientation | Horizontal |
| Full Load Current | 0.15 A, 0.19 A |
| Overall Width | 8-1/4 in |
| Frequency | 60 Hz |
| Vent Design | Ducted |
| Motor Speed | 1,342 RPM, 1,480 RPM |
| Blower Wheel Curve | Forward |
| Noise Level @ 0.250 in SP @ 5 ft | 0.8 sones |
| Primary Light Wattage | 8 W |
| Primary Lighting Technology | LED |
| Exhaust Airflow @ 0.100 in SP | 80 cfm |
| Nameplate Voltage | 120 V AC |
| Profile Height Family | Low |
| Includes Grill | Yes |
| Noise Level @ 0.100 in SP @ 5 ft | 1 sones |
| Primary Light Type | GU24 |
| Profile Width Family | Single-Wide |
| Overall Height | 7-1/2 in |
| Duct Diameter | 4 in |
| Duct Shape | Round |
| Includes Light Bulbs | Yes |
| Light Color Temperature | Warm White |
| Maximum Noise Level | 0.8 sones |
| Sensor Type | None |
| Overall Depth | 12-3/4 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
