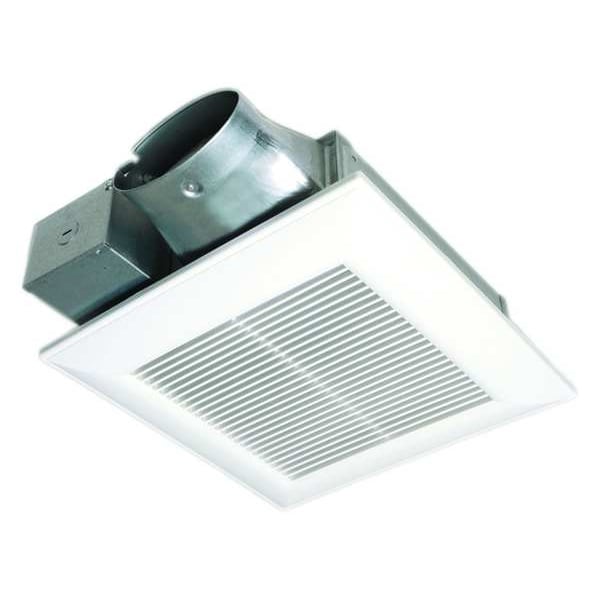

Ceiling or Wall Bathroom Fan, 50/100 cfm cfm, 4 in Duct Dia., 120V AC, Without Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| Mounting Location | Ceiling, Wall |
| CFM @ 0.100-In. SP | 50/100 cfm |
| Includes | Hanger Bars, Mounting Brackets |
| Phase | 1 |
| Watts | 4.4/11.1 W |
| Duct Dia. | 4 in |
| Amps | 0.09/0.2 |
| Housing Material | Steel |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | Less than 0.3/0.9 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Low |
| Nominal RPM | 708/902 RPM |
| Housing Length | 10-1/4 in |
| Standards | cUL Listed, ENERGY STAR, HVI Certified, UL Listed |
| Construction Material | Metal |
| Green Certification or Other Recognition | ENERGY STAR |
| Housing Width | 10-1/4 in |
| Grille Width | 13 in |
| Item | Bathroom Fan |
| Night-Light | No |
| Width (In.) | 10-1/4 |
| Housing Height | 3-23/64 in |
| Hz | 60 |
| Humidity Sensing | No |
| Requires | Ductwork |
| Height (In.) | 3-23/64 |
| Grille Length | 13 in |
| Discharge | Horizontal, Vertical |
| Grille Material | Polypropylene |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Motor Enclosure | Enclosed |
| Motor Type | DC Motor |
| Vent Design | Ducted |
| Includes Grill | Yes |
| For Cut-Out Length | 10-1/2 in |
| Discharge Direction | Horizontal, Vertical |
| Profile Width Family | Single-Wide |
| Duct Diameter | 4 in |
| Includes Light Bulbs | No |
| Nameplate Voltage | 120 V AC |
| Noise Level @ 0.250 in SP @ 5 ft | 1.3 sones |
| Profile Height Family | Low |
| Duct Shape | Oval |
| Overall Width | 10-1/4 in |
| Exhaust Airflow @ 0.250 in SP | 53 cfm, 81 cfm, 100 cfm |
| Motor Speed | 708 RPM, 797 RPM, 902 RPM, 1,025 RPM, 1,070 RPM, 1,121 RPM, 1,230 RPM, 1,270 RPM, 1,300 RPM |
| Frequency | 60 Hz |
| Noise Level @ 0.100 in SP @ 5 ft | 0.9 sones |
| Overall Depth | 10-1/4 in |
| Sensor Type | None |
| Full Load Current | 0.09 A, 0.13 A, 0.2 A |
| Exhaust Airflow @ 0.100 in SP | 100 cfm |
| For Cut-Out Width | 10-1/2 in |
| Maximum Noise Level | 1.3 sones |
| Overall Height | 3-3/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
