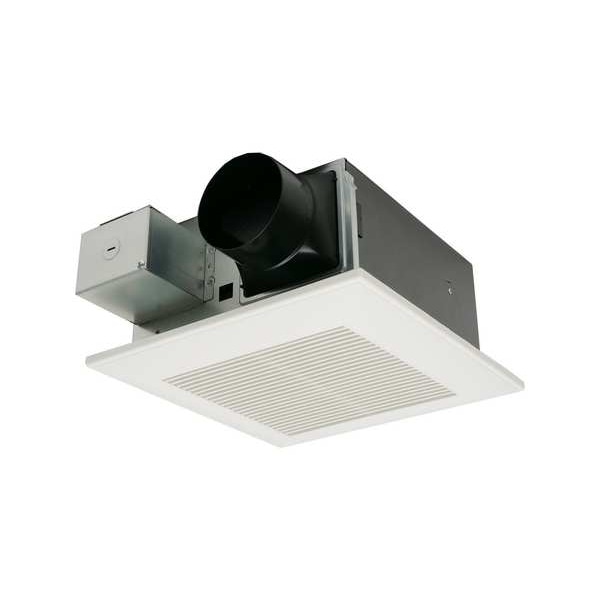

Remodeling Fan, Pick-A-Flow CFM, 110 cfm, 50 cfm, 80 cfm cfm, 4 in Duct Dia., 120V, Without Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V |
| CFM @ 0.100-In. SP | 110 cfm, 50 cfm, 80 cfm |
| Includes | Plastic Alignment Guides, Retaining Clip |
| Phase | 1 |
| Watts | 10.2, 4, 5.9 |
| Duct Dia. | 4 in |
| Amps | 0.29 |
| Housing Material | Steel |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3, 0.8, Less Than 0.3 |
| Lighted | Without Light |
| Profile | Low |
| Standards | ASHRAE 62.2, ENERGY STAR Certified, IAP and California Title 24, ISO 9001 Certified, LEED, UL Listed |
| Motor Enclosure | Enclosed |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Grille Material | Polypropylene |
| Housing Height | 5.6 in |
| Housing Length | 10-1/4 in |
| Motor Type | Electronically Commutated |
| Hz | 60 |
| Nominal RPM | 795 RPM, 820 RPM, 997 RPM |
| Green Certification or Other Recognition | ENERGY STAR Certified and HVI Certified |
| Discharge | Vertical |
| Night-Light | No |
| Item | Remodeling Fan, Pick-A-Flow CFM |
| Requires | Ductwork |
| Housing Width | 10-1/4 in |
| Grille Width | 13 in |
| Grille Length | 13 in |
| Nameplate Voltage | 120 V AC |
| Exhaust Airflow @ 0.250 in SP | 50 cfm, 51 cfm, 80 cfm, 81 cfm, 94 cfm, 111 cfm |
| Overall Height | 15-5/8 in |
| Includes Light Bulbs | No |
| For Cut-Out Length | 10-1/2 in |
| Noise Level @ 0.250 in SP @ 5 ft | 1.5 sones |
| Noise Level @ 0.000 in SP @ 5 ft | 2 sones |
| Overall Width | 13 in |
| Exhaust Airflow @ 0.100 in SP | 110 cfm |
| Overall Depth | 6-5/8 in |
| For Cut-Out Width | 10-1/2 in |
| Discharge Direction | Vertical |
| Vent Design | Ducted |
| Sensor Type | None |
| Frequency | 60 Hz |
| Includes Grill | Yes |
| Duct Shape | Round |
| Noise Level @ 0.100 in SP @ 5 ft | 0.8 sones |
| Full Load Current | 0.08 A, 0.09 A, 0.11 A, 0.13 A, 0.14 A, 0.15 A, 0.16 A, 0.17 A, 0.18 A, 0.21 A, 0.22 A, 0.24 A, 0.26 A, 0.27 A, 0.28 A, 0.29 A |
| Duct Diameter | 4 in |
| Profile Height Family | Low |
| Maximum Noise Level | 2 sones |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
